Adjustable Temperature Electric Soldering Iron 60W

https://www.botshop.co.za/web/image/product.template/505/image_1920?unique=b72051a
(2 reviews)

This product is no longer available.


Internal Reference: T-112

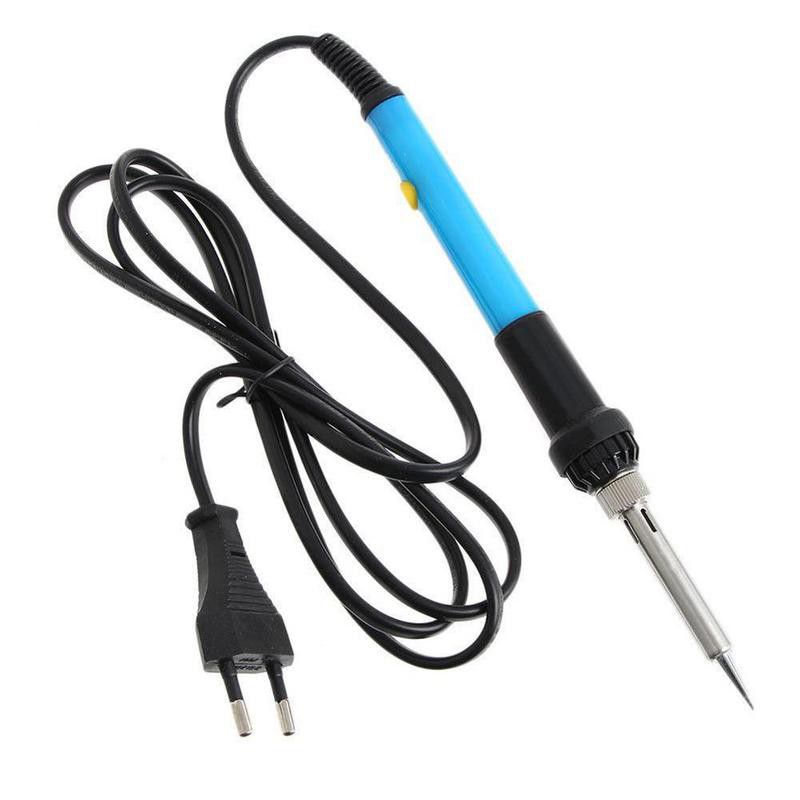

Adjustable Temperature Electric Soldering Iron 60W

Make all your soldering dreams a reality with this Adjustable Temperature Electric Soldering Iron 60W. This fantastic electric soldering iron features an adjustable temperature range of 200-450℃, allowing you to tailor the tool to whatever project you’re working on.

A soldering iron is a hand tool used to solder two metal surfaces together. In its simplest form, it consists of a metal tip, a heating element that brings the tip up to soldering temperature, an insulated handle to allow safe holding of the soldering iron and a plug for either a wall outlet or the soldering station.

The Electric Soldering Iron is ideal for electronic and DIY projects. The soldering iron is made with durable plastic and provides a firm grip when soldering. This soldering iron is also easy to set up and put away which makes it ideal for those on the move.

How to use solder wire with a Soldering Iron

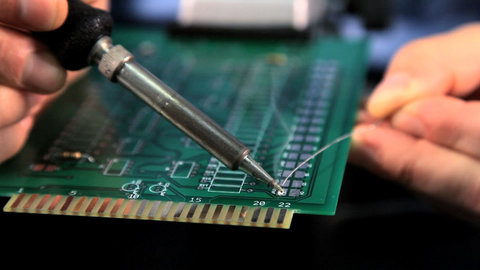

The above image provides you with a visual aid on how to use a soldering iron with solder wire. The above image shows you the most effective way to use a soldering iron and solder wire together. We will explain it to you to clear up any confusion there might be: First make sure the soldering iron is at the correct temperature, then place the soldering iron on the soldering pad/pin of the board, then apply the solder wire onto the soldering pad/pin. The reason we put the soldering iron on the soldering pad/pin first is because the soldering pad/pin needs to heat up first which in turn will make it much easier for the solder to flow to where you need it to be.

Soldering Basics


The above video will show you how to solder and also explain some of the fundamentals and basics of soldering. The above video demonstrates that which has been explained with the above image and its description.

Technical Specification

  • Item Type: Electric soldering iron
  • Material: Metal + plastic
  • Power: 60W
  • Plug: EU/US
  • Temperature Adjustment Range: 200-450℃
  • Temperature: Scale
  • Temperature Stability: ±10 degrees( static 3 seconds test)
  • Storage Temperature: -20-80℃
  • Storage Humidity: 35%-45%
  • Engraving Pen Length: Approx. 20cm
  • Handle Diameter: 1.8cm
  • Cable Length: 140cm
