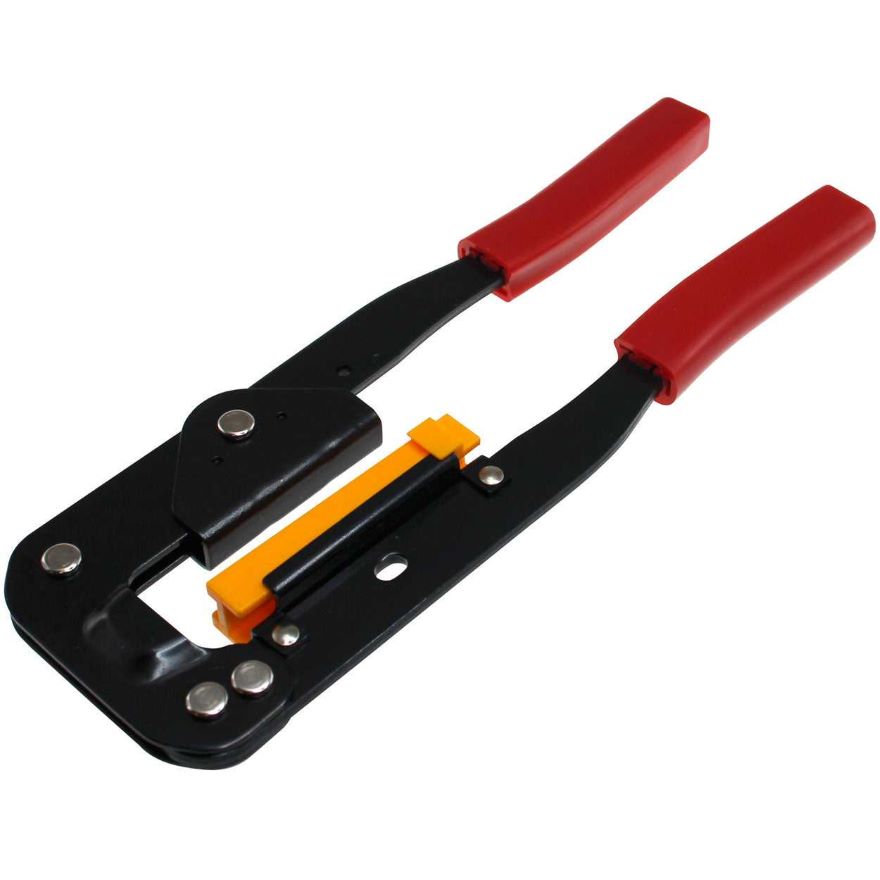

9 1/2" IDC Crimping Tool

 Features and Benefits:

• High-quality steel tool body for excellent strength and long tool life
• Suitable for crimping many variations of IDC connectors onto ribbon cables


Typical Applications:

• Maintenance & repair
• Electrical Installations
• Cable assemblies


FAQ:
How do you maintain the product?

• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

•


The Importance of a High-Quality Crimp

When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and the terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is without any voids between the wire strands and the terminal. If there are any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
