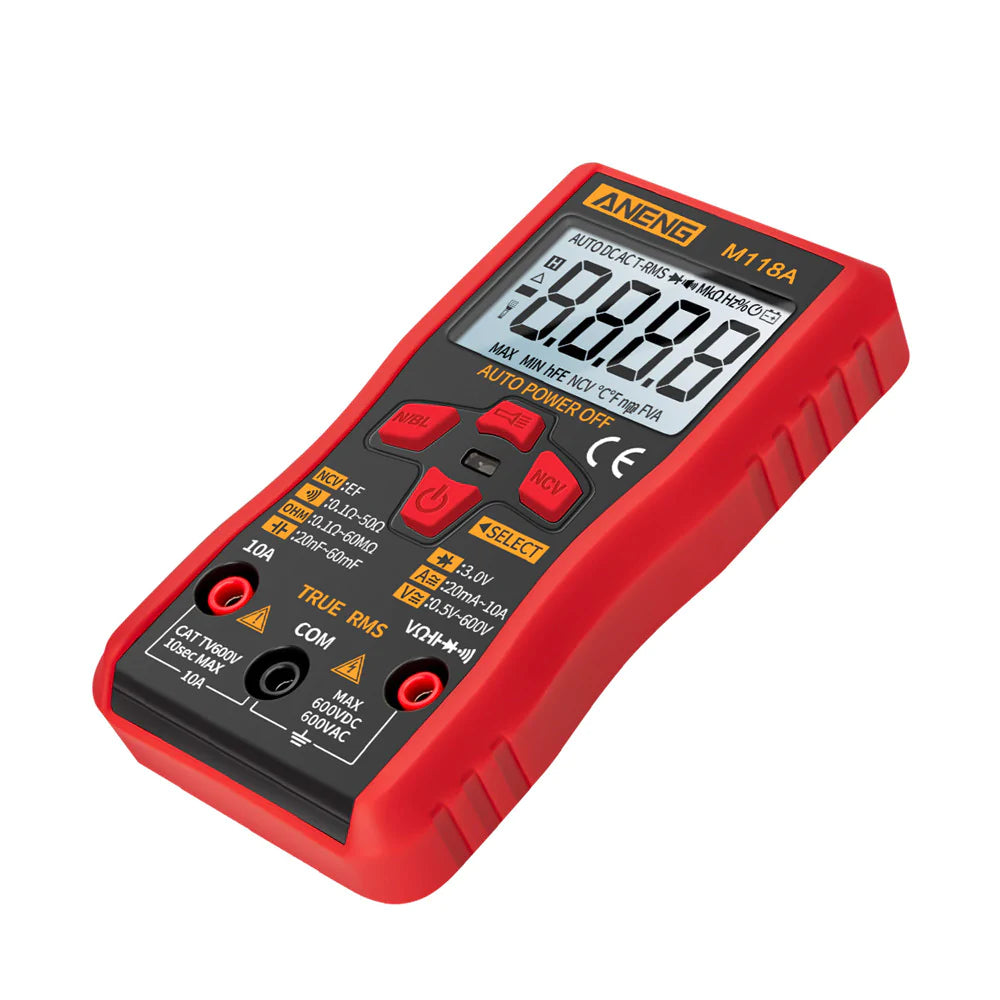

M118A Digital Mini Multimeter
Introduction to Smart Multimeters:
This is an excellent small form factor multimeter and is great for beginners. It has a few functions that are great to have in a multimeter like the NCV function for detecting if a wire is live from the outside of the wire without cutting it. Another great function is the AUTO Function which will detect what you want to measure for example without having to change settings on the multimeter it will automatically detect between DC Voltage and AC Voltage and even go directly to resistance measurements. Even more, it has a flashlight for when you have to work in the dark.
Features:
Brand | ANENG | Model | M118A |
Resistance | Yes | Display | 6000 counts |
capacitance | Yes | continuity test | Yes |
NCV | Yes |
|
|
All unit symbol | Yes | Backlight manual | Yes |
true RMS | Yes | automatic shutdown | Yes |
Flashlight lighting | Yes | diode | Yes |
Sampling rate | Yes | power source | 2 x 1.5V AAA |
| Range | Accuracy |
DC/AC voltage | 6V/ 60V/ 600V | ±(0.5%+3) |
Resistance | 600Ω | ±(0.8%+5) |
| 6kΩ/60kΩ/600kΩ/6MΩ | ±(0.8%+3) |
| 60MΩ | ± (2.5%+3) |
Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(3.5%+20) |
| 60mF | ±(5%+3) |
AC / DC current | 6A/10A | ±(2%+30) |
