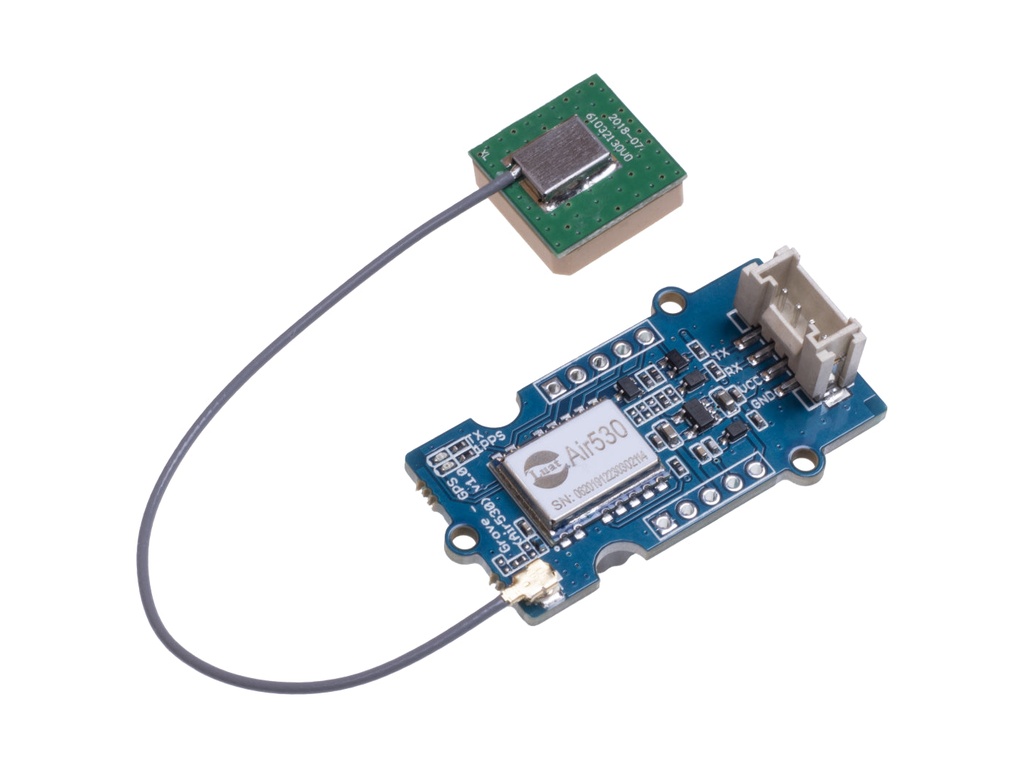

Grove - GPS (Air530)

https://www.botshop.co.za/web/image/product.template/926/image_1920?unique=44b9532
(0 review)

409.68 409.68 ZAR 409.68 VAT Included

419.10 VAT Included

Not Available For Sale

This combination does not exist.

BreakoutModule Navigation Sensor Module GPS

Internal Reference: SS-012

Description

Confused about your GPS not working well in urban or outsides under only one or a few satellite modules? Then you should not miss our new Grove-GPS (Air530). It’s a high-performance, highly integrated multi-mode satellite positioning and navigation module to use with Arduino. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone. Meanwhile, this module is capable of receiving more than 6 satellites at the same time and is able to work excellently even if there's a very bad signal.

Note: The test above is taken under bi-modules of GPS&Beidou.



Pinout


Cautions

  • The input power supply voltage of the Grove power supply interface, should not exceed 5.6V, otherwise, it may damage the device.
  • The voltage of the selected button battery should not exceed 3V, or it will probably damage the device.

Applications

  • GPS tracker
  • GPS navigation
  • Distance measurement
  • Car navigation
  • Drone

Features

  • Size: 40mm x 20mm x 13mm
  • Update Rate: 1Hz, max 10Hz
  • Baud Rate: 9600 –921600
  • Navigation Sensitivity: –166dBm
  • Power Requirements: 3.3/5V
  • Number of Channels: 22 tracks, 66 channels
  • Time to first start: Cold start: 30 seconds
                                 Warm Start: 4 seconds
  • Antennas: Antenna included
  • Accuracy: 2.5m Horizontal positioning accuracy

Technical Specification

  • Supply voltage: 3.3V/5V
  • Working current: up to 60mA
  • Interface: UART
  • Time of warm start: 4s
  • Time of cold boot: 30s
  • Working Temperature: -35C-85°C
  • Storage Temperature: -55°C-100°C

Time of Positioning:

  • Pure hardware cold start: 27.5s
  • Pure hardware hot start: <1S
  • Pure hardware recapture: <1S
  • Software-assisted A-GNSS: <5S

Sensitivity:

  • Cold start: -148dBm
  • Hot Start: -162dBm
  • Recapture: -164dBm
  • Track: -166dBm

Accuracy:

  • Horizontal positioning accuracy: 2.5m
  • High positioning accuracy: 3.5m
  • Speed accuracy: 0.1m/s
  • Time transfer accuracy: 30ns

Consumption:

  • Capture current value@3.3V: 42.6mA
  • Tracking current value@3.3V: 36.7mA
  • Low power mode@3.3V: 0.85mA
  • Ultra-low-power mode@3.3V: 31uA
