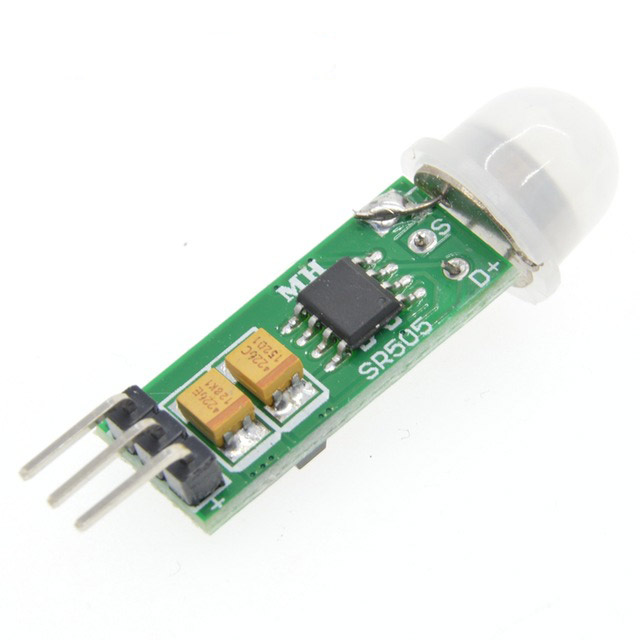

HC-SR505 Mini PIR Sensor
HC-SR505 small body sensing module is based on infrared technology, automatic control products, high sensitivity, high reliability, ultra-small, ultra-low-voltage operation mode. Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
- Operating Voltage Range: DC4.5-20V
- Static current: <60uA
- Output level: High 3.3V / Low 0V
- Trigger: repeatable trigger (default)
- Delay time: Default 8S + -30%
- PCB Dimensions: 10 x 23mm
- Induction angle: < 100-degree cone angle
- Induction distance: 3 meters
- Working temperature: -20 - +80 degrees
- Sensor Lens Dimensions: Diameter: 10mm (default)
