Pressure Sensor for Water Air Oil 0~0.5Mpa

https://www.botshop.co.za/web/image/product.template/1439/image_1920?unique=5245438
(0 review)

490.08 490.08 ZAR 576.56 VAT Included

501.36 VAT Included

Not Available For Sale

This combination does not exist.

Component Electronic Sensor Sensors Pressure

Internal Reference: SEN-056

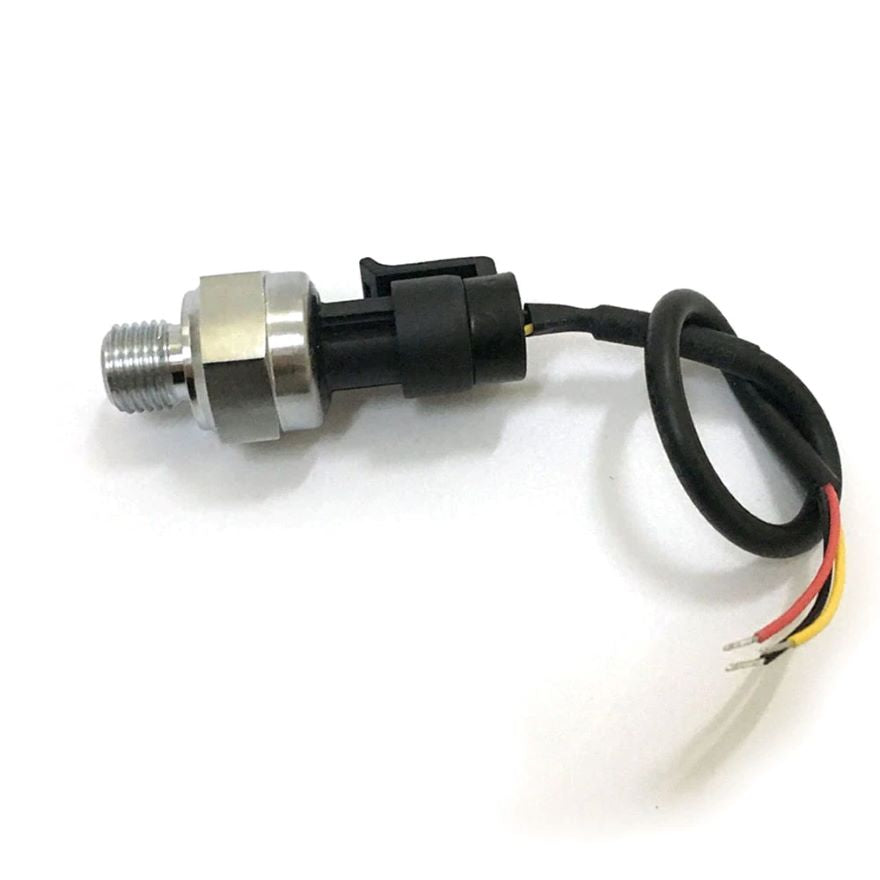

    0~0.5Mpa Pressure Sensor for Water Air Oil

    Introducing the perfect pressure sensor for your hobbyist needs: our 0~0.5Mpa Pressure Sensor for Water Air Oil! This powerful product is designed to give you precise readings at a moment’s notice. With an operating voltage of 5V DC and an output voltage ranging from 0.5-4.5V, this stainless steel and carbon steel alloy sensor is perfect for measuring air, oil, and water with maximum precision.

    This 0.5MPa Pressure Sensor unit with G1/4” Fitting is a high-quality pressure sensing unit designed to be used for measuring and monitoring the pressure of gas, diesel, oil, and other non-corrosive liquids or gases. It has a carbon steel alloy sensing unit for highly accurate measurements, with durable components to ensure a long-lasting lifespan. It is capable of measuring pressures up to 2.4MPa without damage and operates on a low voltage of 5V DC at ≤10mA. It can safely handle temperatures of up to 85°C, with a quick response time of ≤2.0ms – making it perfect for the intense environment within a fuel tank or similar type of space.

    The 0.5MPa G1/4” Pressure Sensor is ideally used for measuring the pressure of fuel, diesel, water, gas, and even air, capable of handling high temperatures and pressures with its carbon steel alloy sensing unit. The sensor is also waterproof, allowing it to be installed within liquids, which is very useful if it’s being installed within a fuel tank or similar location. It offers an impressively low ±1.5%FSO measuring error, while the low response time of 0.2ms ensures that you can know precisely when the pressure changes.

    Dimensions

    The above image shows you the dimensions of the 0~1.2Mpa Pressure Sensor for Water Air Oil as well as some of its components that can be detached from the unit itself. These dimensions and components are the same for the 0 ~ 0.5Mpa Pressure sensor

     0~0.5Mpa Pressure Sensor for Water Air Oil Specification

    Operating Voltage

    5V DC

    Output Voltage

    0.5 - 4.5V DC

    Sensor Material

    Carbon Steel Alloy

    Housing Material

    Stainless Steel

    Operating Current

    ≤10mA

    Operating Pressure Range

    0 - 0.5MPa

    Maximum Pressure Before Break

    1MPa

    Cable Length

    19cm

    Operating Temperature

    0 - 85°C

    Measuring Error

    ±1.5%FSO

    Response Time

    0.2ms
