NTC 10k temperature probe (waterproof)

(0 review)

51.83 51.83 ZAR 60.97 VAT Included

53.02 VAT Included

Not Available For Sale

This combination does not exist.

Sensors BreakoutModule Sensor Temperature Environment

Internal Reference: SEN-046

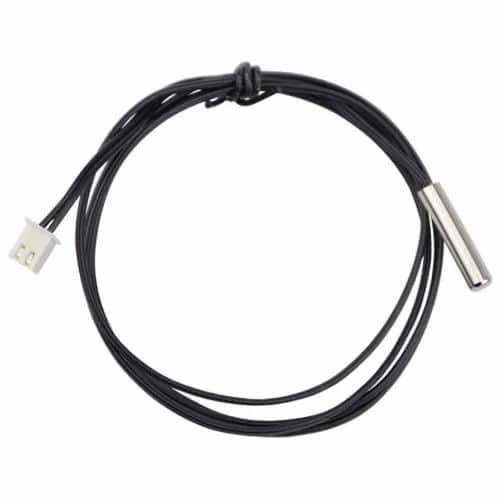

NTC 10k temperature probe

Easy to use and work with the STC-1000 Temperature Controller
In Negative Temperature Coefficient (NTC) thermistors, resistance decreases with an increase in temp. You can thus use a microcontroller easily to measure the resistance decrease.

Have a look at this article for more information: http://www.circuitbasics.com/arduino-thermistor-temperature-sensor-tutorial/

Features :
High sensitivity, rapid response.
Compact structure, easy install, good water resistance.
The use of wide temp, good stability, high reliability.
Can provide different R, B value of products, interchangeable, high precision.

NTC 10k temperature probe Specification :

Type: Temperature Sensor
Material: Mixture
Material Crystal structure: Polycrystalline
Theory: Resistance Sensor
Output: Analog Sensor
10K 1% accuracy: High-temperature type
Resistance accuracy: ± 1%, ± 2%, ± 3%
Range: -40 ℃ to +300 ℃
The maximum rated power: 45mW
Thermal time constant: ≤3S (static air)
Resistance temperature coefficient: -2 to -5% / ℃
Insulation performance: 500V
DC test a single root insulation resistance: ≥ 100MΩ
Cable Lenght: 50mm
