pH Sensor Module

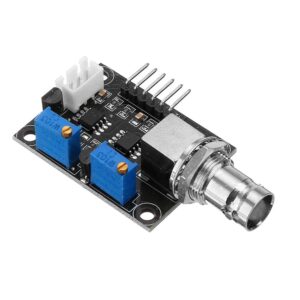

The pH sensor module Measure the pH value in liquids using this pH-201 pH Probe with BNC Connector. It can easily be used with any 5 V microcontroller like Arduino board.

A temperature sensor built into the board allows for temperature compensation during pH value calculation. Using a microcontroller like for example an Arduino, you can read the temperature from Pin T0. The module has also two potentiometers: One for setting the sensor offset (next to the BNC connector) and a second one for setting a threshold for the D0 pin. D0 is set to HIGH as soon as the pH threshold is passed.  By default, the offset is set to 0 V when a pH value of 7 is measured which means that acidic solutions cause a negative voltage. Using the offset trimmer you can set the voltage range to be between 0 and 5 V - which again equals 0 to 14 pH.

Please note that you have to turn the trim pots a few times to be able to see the difference that it makes.

Pinout:

  • T0: Temperature, analog output
  • D0: 3,3V output when measured pH value is higher than the set threshold
  • P0: pH value, analog output
  • GND: Probe ground
  • GND: Sensor board ground
  • VCC: 5V operating voltage

pH Sensor Module Specs:

  • Operating Voltage: 5V
  • Current Draw: up to 10 mA
  • Temperature Range: 0 - 60˚C
  • pH Range: 0 - 14
  • Response Time: < 1 min
  • Accuracy: ± 0.2 PH
