AC voltage sensor 250V

https://learn.botshop.co.za/web/image/product.template/491/image_1920?unique=bea38f9
(2 reviews)

86.83 86.83 ZAR 86.83 VAT Included

75.50 VAT Included

Not Available For Sale

This combination does not exist.

Sensors Module Measurement

Internal Reference: SEN-022

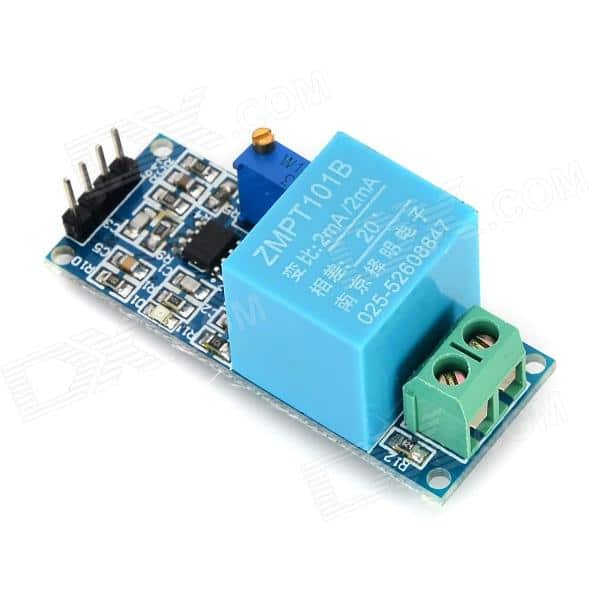

AC voltage sensor - 250V

A voltage transformer ideal to measure AC voltage with a microcontroller. It has high accuracy, good consistency for voltage and power measurement and it can measure up to 250V AC. It is simple to use and comes with a multi-turn trim potentiometer for adjusting the ADC output.

Please note that you have to turn the trim pot quite a few times to be able to see the change in the ADC output.

Features

  • Measure within 250V AC
  • Onboard micro-precision voltage transformer
  • Analog output corresponding quantity can be adjusted.
  • Good consistency, for voltage and power measurement
  • Very efficient and accuracy

AC voltage sensor 250V

Technical specifications:

  • Output Signal: Analog 0 – 5V
  • Size: 49.5 (mm) x19.4 (mm)
  • Operating temperature: 40ºC ~ + 70ºC
