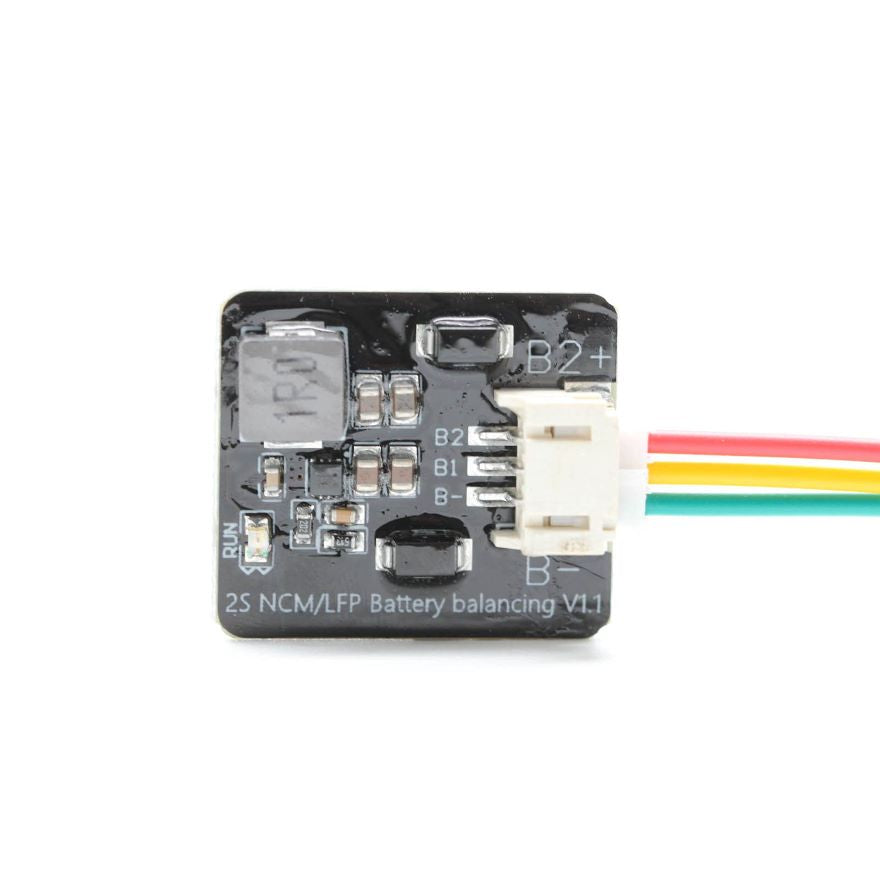

2S Balance Li-ion Lifepo4 BMS.
This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.
2S Balance Li-ion Lifepo4 BMS Specification:
- Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.
- Equilibrium current:
- Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
- Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
- The smaller the differential pressure, the smaller the equalization current
