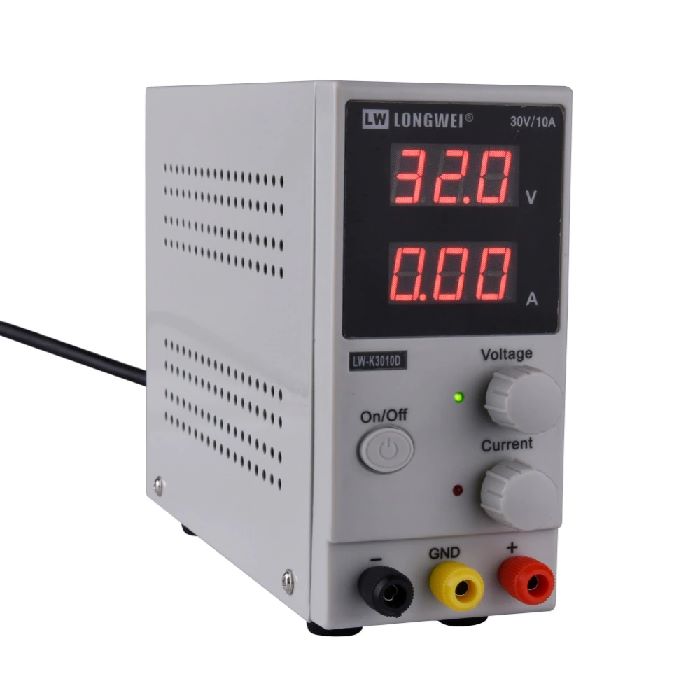

Bench Power Supply DC 30V10A.
Mini Switching DC Power Supply Unit features single channel output, high accuracy, and dual LED display. It is adjustable for both Amperes and Volts.
User safety is ensured by overload protection, overheat protection, and short circuit protection functions. Small size, easy handling, sturdy case, good performance, and excellent cost-effectiveness make this power supply unit perfect for science investigation, college and factory applications, electronic device maintenance, and more.
3010D 30V 10A Power supply Specification:
Single-channel output.
CC/CV auto switchable.
110V/220V switchable.
Overload protection function.
Overheat protection function.
Short circuit protection function.
Fine controllable adjustment of voltage and current via multiturn potentiometer.
Cooling with a fan.
3/4 digital LED display for voltage and current.
Small body, lightweight (only 1.4 kg), easy to carry.
| Input voltage | 220 V, 50/60 Hz |
| Output voltage | 0 ~ 30 V |
| Output current | 0 ~ 10 A |
| Voltage resolution | 10 / 100 mV |
| Current resolution | 1 / 10 mA |
| Ripple and noise | Vp-p ≤ 1% |
| Voltage display precision | ±1% +1 digit |
| Current display precision | ±1% +2 digits |
| Dimensions, W × H × L | 81 × 165 × 220 mm |
| Net/gross weight | 1.4 kg / 1.7 kg |
Please note:
Make sure that the switch at the back of the power supply is set to 220V before powering it up.
