Raspberry Pi USB Expansion Board Hub

(1 review)

142.03 142.03 ZAR 167.08 VAT Included

145.29 VAT Included

Not Available For Sale

This combination does not exist.

PI Module

Internal Reference: PI-010

This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.

Works with Raspberry Pi 3, 4 and Zero

Raspberry Pi USB Expansion Board Hub Features:
4 USB expansion ports onboard, compatible with USB2.0/1.1 transmission
Onboard USB to UART, convenient for Raspberry Pi to perform serial debugging
There are multiple indicator lights onboard to easily check the working status of the power supply, USB to UART and USB expansion interface
Raspberry Pi hub hat
  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB to UART: for controlling the Raspberry Pi via serial terminal
  3. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
    • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
    • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
  4. USB extended ports: USB1~USB4
  5. USB port indicators: a dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
  6. Power indicator
  7. USB to UART indicator
  8. FE1.1S: USB HUB chip
  9. 12MHz crystal
  10. CP2102: USB to UART converter
Working voltage: 5V
Product size: 65mm × 30mm
Fixed hole diameter: 3.0mm

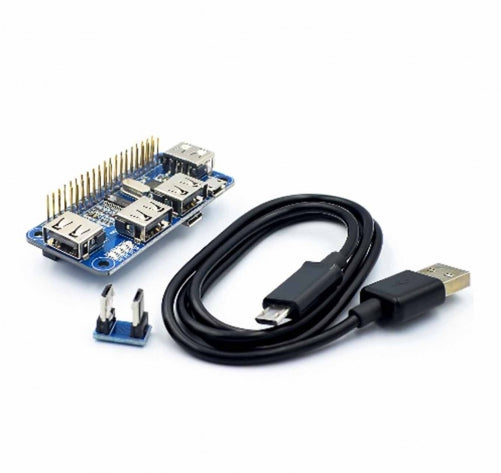

Package includes:
1 x USB Hub Extension Board ( not including a Raspberry Pi )
1 x Converter
1 x Cable
