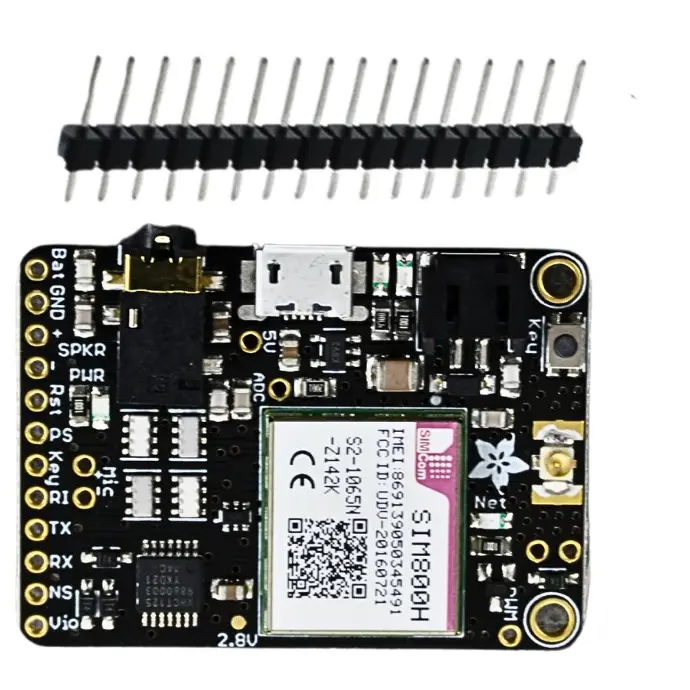

Sim800H Module
This small module is ideal to send small data packages via 2G communication. If you have to send data over long distances, this is the ideal module for you. It is a quad band module that works on both GSM and GPRS and it functions on GSM850MHz, EGSM900MHz, DCS1800MHz and PCS1900MHz and it can be set up to enter sleep mode to use very little power if you want to use the module somewhere where it has to run from a battery.
Please note:
The external antenna is not included.
Technical information:
Input voltage | 3.V - 5V |
Power consumption in sleep mode | 1.04mA |
Operating temperature range | -40°C ~ 85°C |
SMS | Supports SMS |
SIM interface | 1.8V, 3V |
External antenna | Connects to the IPEX connector |
RTC | Supports RTC |
Phonebook management | SM, FD, LD, RC, ON, MC |
Communication method | RX / TX |
Sound | Mono sound output |
Microphone | Support microphone connectivity |
