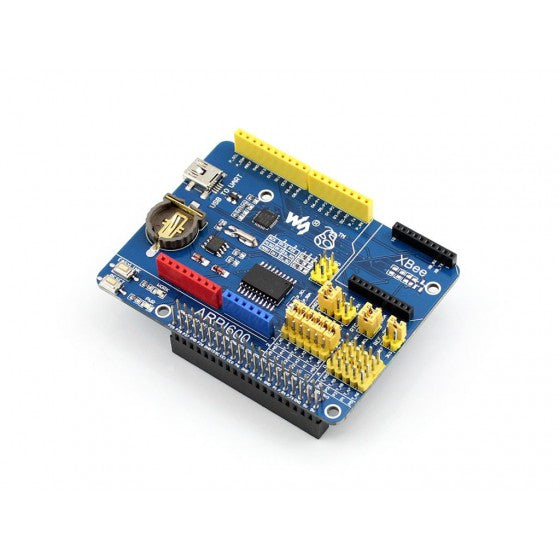

ARPI600 IO Expansion Board for Raspberry Pi

This IO expansion board is unique due to its ability to function as an expansion board for an Arduino Uno, Rasbery Pi, or XBee. You can use this board with any of the processors mentioned to connect more sensors to your system for input, or to connect more outputs to the system.

Pin layout:

1. Arduino connector Used to connect Arduino Uno and shields
2. ICSP interface Used for Arduino ICSP
3. XBee connector Used to connect XBee communication modules
4. Sensor interface Used to connect sensors
5. Raspberry Pi connector Used to connect Raspberry Pi
6. USB to UART
7. TLC1543 Analog to digital converter
8. PCF8563 RTC
9. CP2102
10. 32.768KHz crystal RTC
11. Power indicator
12. XBee state LED
13. XBee and Arduino reset button
14. XBee easy link button
15. RTC battery holder CR1220
16. TLC 1543 reference voltage configuration
17. RTC jumper

18. UART jumper:

  • When connection P_RX and CP_TX, P_TX and CP_TX and CP_RX respectively, USB to UART is connected to Raspberry Pi serial port.
  • When connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB to UART is connected to XBee serial port.
  • When connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port.

    19. Arduino AD selection jumper:

    • Short 2 and 3: Arduino A0-A5 as AD input
    • Short 1 and 2: Arduino A0-A5 as digital control.

      20. Arduino I2C selection jumper:

      • Short the jumper: Arduino A4-A5 as I2C control (The A4-A5 of Arduino AD selection jumper should be opened)

        21. Arduino SPI selection jumper:

        • Short 1 and 2: Arduino D11-D13 as SPI control (default)
        • Short 2 and 3: Arduino D11-D13 as digital control
        ARPI600 IO Expansion Board for Raspberry Pi pin layout
