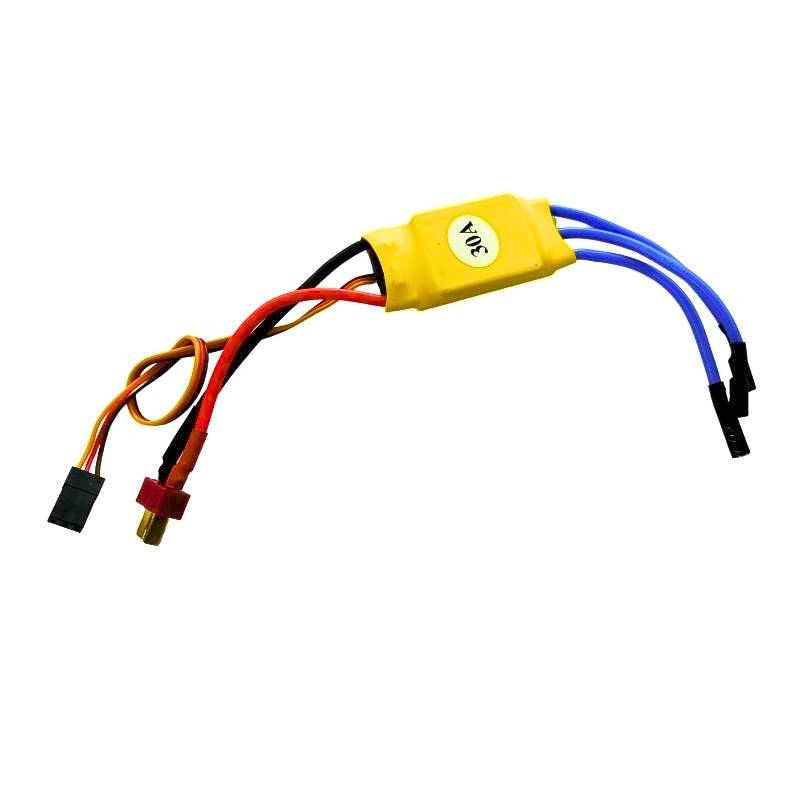

Brushless ESC 30A

https://www.botshop.co.za/web/image/product.template/617/image_1920?unique=859134b
(0 review)

181.07 181.07 ZAR 213.03 VAT Included

185.24 VAT Included

Not Available For Sale

This combination does not exist.

Electronic ElectroMechanical BreakoutModule Driver

Internal Reference: MOD-234

Brushless ESC 30A

This brushless ESC is used to control the speed of a brushless motor. It is widely used on remote controlled drones and helicopters and can be used on some airplanes as well. It has a safety feature that prevent the motor from spinning regardless of the position of the throttle after powering the motor. The throttle range can also be calibrated which allows it to be used on different transmitters.

Technical specifications:

Input voltage  2S or 3S Lipo battery (5.6V - 16.8V)
Max continuous current 30A
Max current bursts (less than 10 seconds) 40A
Max RPM 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM
Refresh rate 50Hz - 432Hz
Dimensions 68mm x 25mm x 8mm
Weight 37g
