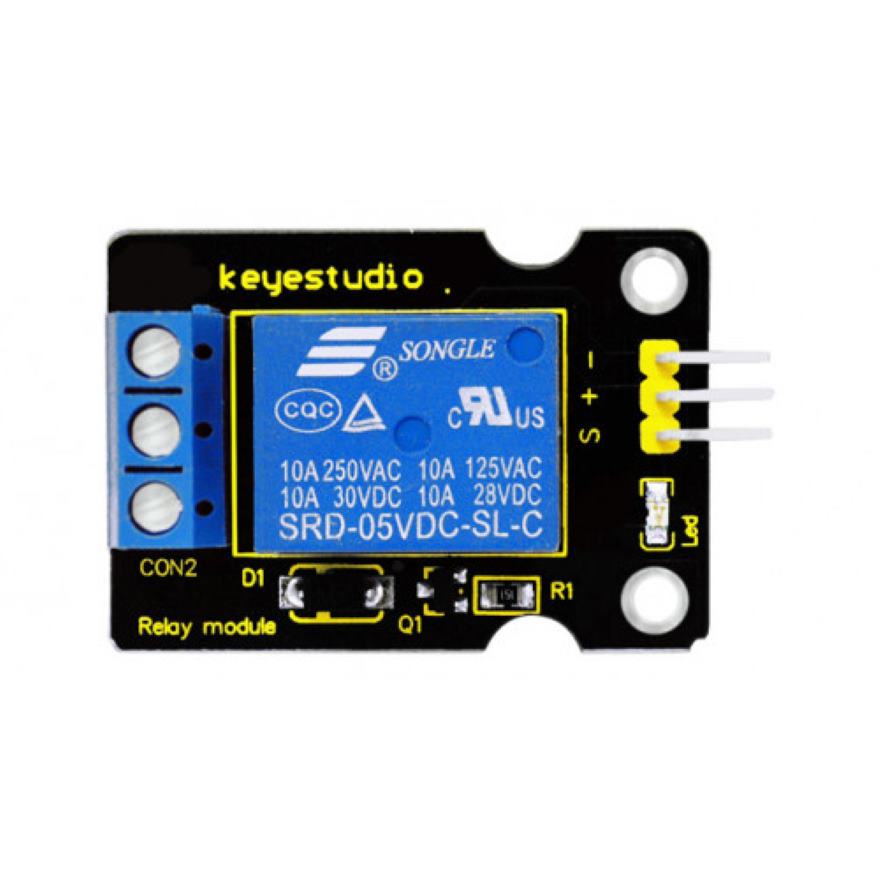

Relay breakout board (Keystudio ) 10A

Introduction

This 5V Relay Module is designed by Keystudio with the aim of providing inexpensive but quality-focused module to hobbyists, Makers and general users. Despite the small size, the 1 Channel 5V Relay Module can control a separate isolated circuit of up to 10A and 250V – making it a great choice for most home project applications.

With a relay, you don’t have to stress about the dangers of high current and high voltage escaping the circuit you are controlling, as the relay provides isolation to protect both you and your low-voltage circuitry from any possible leakage. Additionally, it only requires a single input/output channel and can be operated from a wide range of different microprocessors or chip-based boards – meaning that you don’t need to have special equipment to run the relay and can simply power and operate it with a simple circuit.



Keystudio module KS0011

  • Type: Digital
  • Rated current: 10A (NO) 5A (NC)
  • Maximum switching voltage: 150VAC 24VDC
  • Digital interface
  • Control signal: TTL level
  • Rated load: 8A 150VAC (NO) 10A 24VDC (NO), 5A 250VAC (NO/NC) 5A 24VDC (NO/NC)
  • Maximum switching power: AC1200VA DC240W (NO) AC625VA DC120W (NC)
  • Contact action time: 10ms

Datasheet:

 https://fs.keyestudio.com/KS0011
