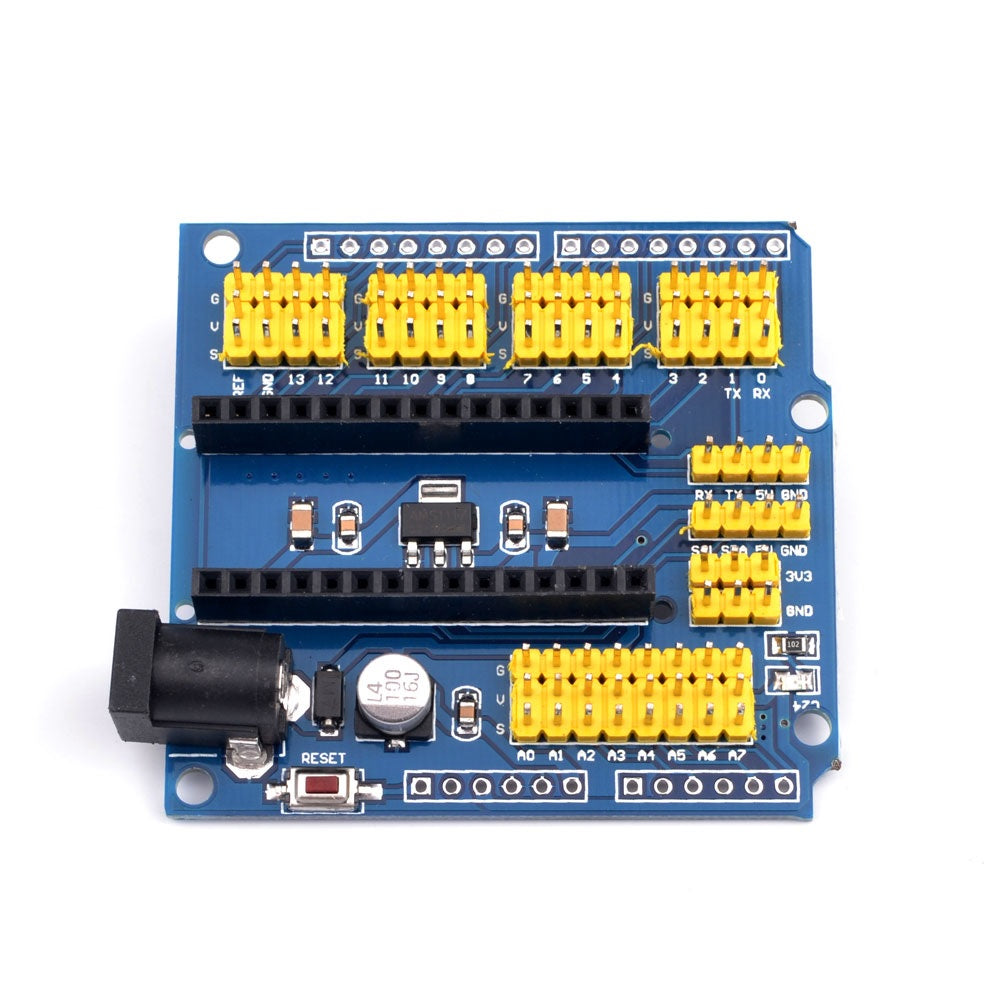

NANO UNO Multi-Function Expansion Board- Blue Board

Arduino Nano V3.0 I/O Expansion Board / Prototype Shield is specifically designed to facilitate an easy access of the interface pins of an Arduino Nano. Essentially, it expands the Arduino Nano Microcontroller to interface with external devices in a simple and trouble-free manner. Each DIO pin or analogue pin of the Nano is brought out to a convenient header. If you add header pins, this board can also be used as expansion shield for UNO. It is a perfect companion of Nano breadboard and compatible with both Arduino Nano V2.x and V3.x.

Parameters:

  • Model Number: XD-212

  • Size: 63mm X 53mm X 13mm

  • Input voltage: 3.3V - 5V

  • 6 PWM Pin

  • 1 Servo power input

  • 5 I2C expansion Pin

  • 8 analog Pin with power output and GND

  • 14 I/O Pin (servo type with GND, power and signal)

  • AMS1117 3.3V Output Voltage
  • Also compatible with Arduino UNO after soldering pin headers to this shield.
