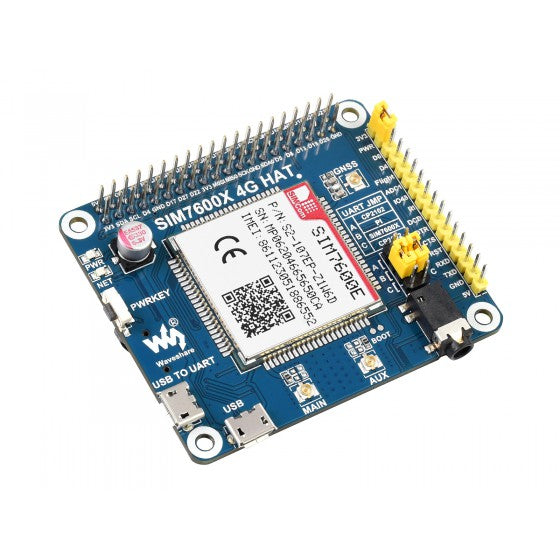

SIM7600E lte cat-1

https://www.botshop.co.za/web/image/product.template/1776/image_1920?unique=900a7ff
(0 review)

2,745.21 2745.21 ZAR 3,229.66 VAT Included

2,808.40 VAT Included

Not Available For Sale

This combination does not exist.

Module GSM GPS

Internal Reference: MOD-215

Description

The SIM7600E-L1C is a Multi-Band LTE-FDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in an SMT type that supports LTE CAT1 up to 10Mbps data transfer. It has strong extension capability with rich interfaces including UART, and USB2. 0, GPIO, etc.

Wireless communications in the world of electronics and prototyping have always been a rapidly evolving area, with new networks and protocols being introduced at a wildly rapid pace, which each offer distinct benefits and improvements over previous iterations and technologies. However, while these new networks and protocols are undoubtedly better than what we used to deal with in the past, some of them are quite complex in nature and require advanced knowledge and expertise to get working just right – especially when considering the modem complexity required for both high speeds and stable connections.

Fortunately, as Makers in a beautifully modern world, these higher levels of complexity are not quite as daunting as they would have been in the past, as we can now simply get awesome modules like the SIM7600E LTE Cat-1 HAT for Raspberry Pi, which take away all of those complexities in order to provide a simplified, powerful and very functional way for us to take advantage of LTE and wireless comm’s. These modules are specially designed to make your life as a Maker as easy as possible, while still giving you all the benefits that LTE Cat-1 communications can offer. They are designed in the classic Pi HATs style so as to provide excellent compatibility and ease of use and are built to allow you to get your projects connected with impressive networking capabilities, even in remote and hard-to-reach places.

In terms of support and compatibility, we’ve been impressed with just how versatile this Pi HAT really is, as despite being a part of the Pi HATs range, offering simple support for Raspberry Pi via the classic 40 Pin GPIO, this HAT is also perfectly compatible with Arduino Boards as well as many other STM32 based boards via the 15 Pin Control Interface. As such, even if you love working with Arduino, the NVIDIA Jetson Nano, the Orange Pi, or almost any other boards with UART capabilities, you can take full advantage of the awesome features that the SIM7600E LTE HAT is ready to offer.

Please Note: This Pi HAT can operate on both 3.3V and 5V DC, and this can be selected by utilizing the included jumper to tie either voltage pin to the VCCIO Pin. However, it’s important to remember that this must be done while the module is unpowered to avoid any unnecessary damage.


LTE CAT-1 HAT FOR RASPBERRY PI

Enabling LTE Cat-1/3G/2G Communication & GNSS Positioning

Based on SIM7600E

 SIM7600E LTE Cat-1

SIM7600E LTE Cat-1 Features At A Glance

  • Supports dial-up, telephone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone calls
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

SIM7600E LTE Cat-1 Specification

LTE CAT-1/3G/2G
LTE Cat-1 LTE-TDD: B38 / B40 / B41
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
3G UMTS / HSPA +: B1 / B5 / B8
2G GSM / GPRS / EDGE: 900 / 1800 MHz
GNSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / -159dBm (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.21mm × 65.15mm
Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

SIM7600E LTE Cat-1
  • Dial-Up On Windows/Linux
  • LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *
  • 3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

SIM7600E LTE Cat-1

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

SIM7600E LTE Cat-1 diagram
GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

SIM7600E LTE Cat-1
Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

SIM7600E LTE Cat-1

What's On Board

SIM7600E LTE Cat-1
  1. SIM7600E
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
    translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. SPX29302 power chip
  7. Raspberry Pi GPIO header
  8. SIM7600 control interface
    for connecting with host boards like Arduino/STM32
  9. SIM card slot
    supports 1.8V/3V SIM card
  10. TF card slot
    for storing data like files, messages, etc.
  11. 3.5mm earphone/mic jack
    for audio actions like making a telephone call
  12. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
  13. USB TO UART interface
    for serial debugging, or login to Raspberry Pi
  1. MAIN antenna connector
  2. AUX antenna connector
  3. GNSS antenna connector
  4. Module power switch
  5. Network status indicator
  6. Power indicator
  7. Operating voltage selection jumper
    configured via 0Ω resistor jumper
    VCCIO - 3.3V: set operating voltage as 3.3V
    VCCIO - 5V: set operating voltage as 5V
  8. UART selection jumper
    A: access Raspberry Pi via USB to UART
    B: control the SIM7600 with Raspberry Pi
    C: control the SIM7600 via USB to UART
  9. PWR configuration jumper
    PWR - 3V3: auto startup on power-up (default)
    PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
    Flight mode configuration jumper
    NC by default, no flight mode control pin
    Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  10. USB connector solder pads
  11. BOOT forced programming solder pads

Pinout Definition

SIM7600E LTE Cat-1 pinout

Outline Dimensions

SIM7600E LTE Cat-1 dimensions
