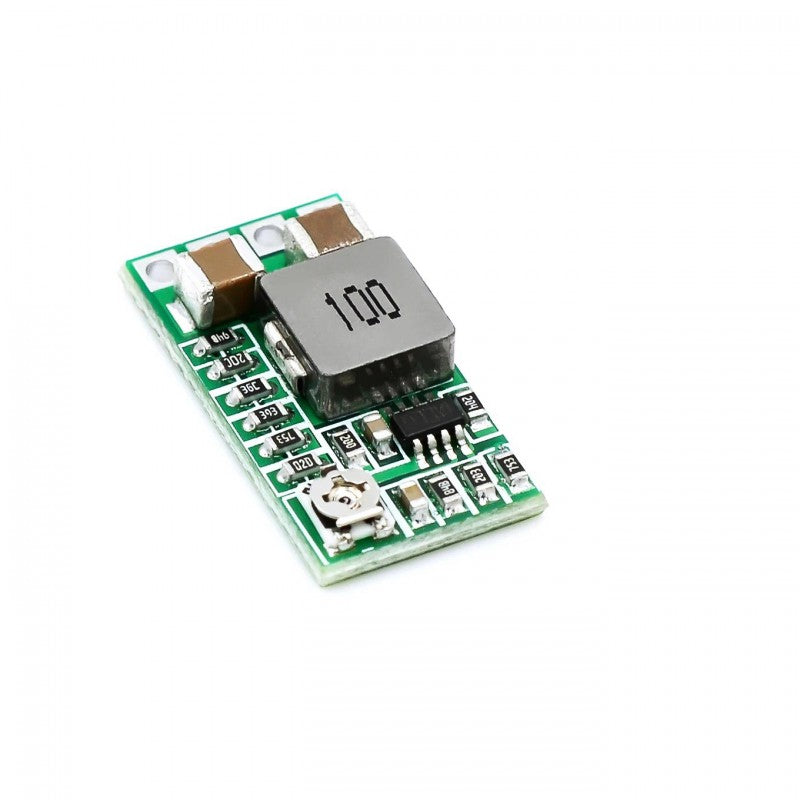

Buck converter 4-24V To 1-20V 3A

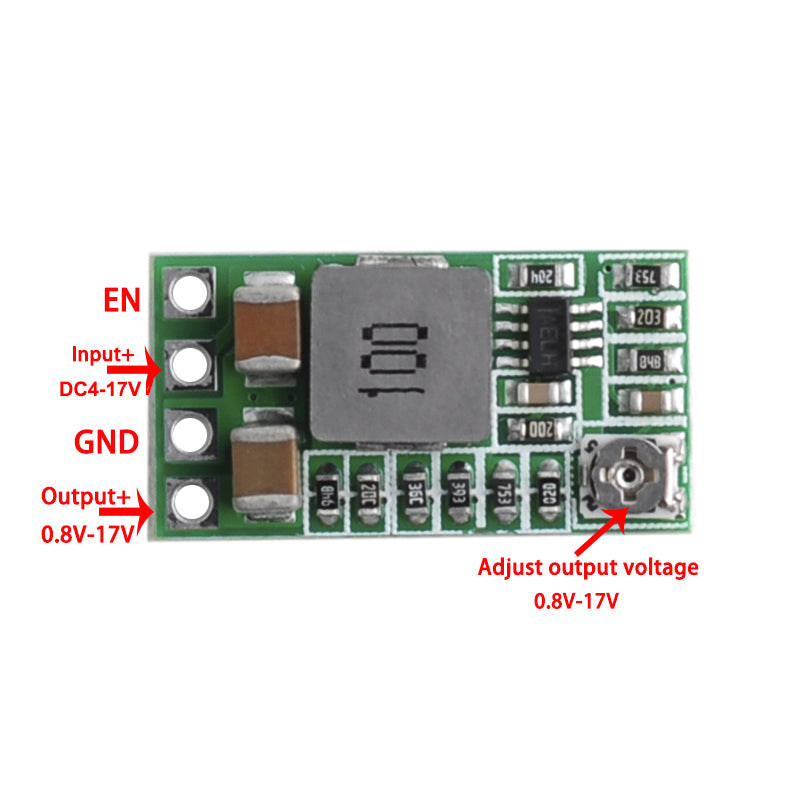

This buck converter module features an MPS MP2307 step-down converter IC. The output voltage can be adjusted from 1.0VDC up to 20VDC using a potentiometer provided the expected output is lower than the input. The MP2307 has built-in thermal protection, however, if the continuous maximum current of 1.8A is required, additional cooling will be needed.

  • IC: Monolithic Power Systems (MPS) MP2307
  • Model: MH-MINI-360
  • Efficiency: Up to 95%
  • Operating Temperature: -40℃ to +85℃
  • Automatic thermal shutdown if the device temperature exceeds 160℃

Technical specifications:

Input voltage 4.75V - 23V DC
Output voltage 1V - 20V DC
Max burst current 3A
Max continuous current 1.8A
Fixed swinging frequency 340kHz
Over current protection Yes
Thermal protection Yes
Dimensions 18mm x 12mm x 3.9mm
