Expansion Board NANO IO Shield

https://www.botshop.co.za/web/image/product.template/822/image_1920?unique=5bb2707
(0 review)

60.85 60.85 ZAR 60.85 VAT Included

52.91 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: MOD-200

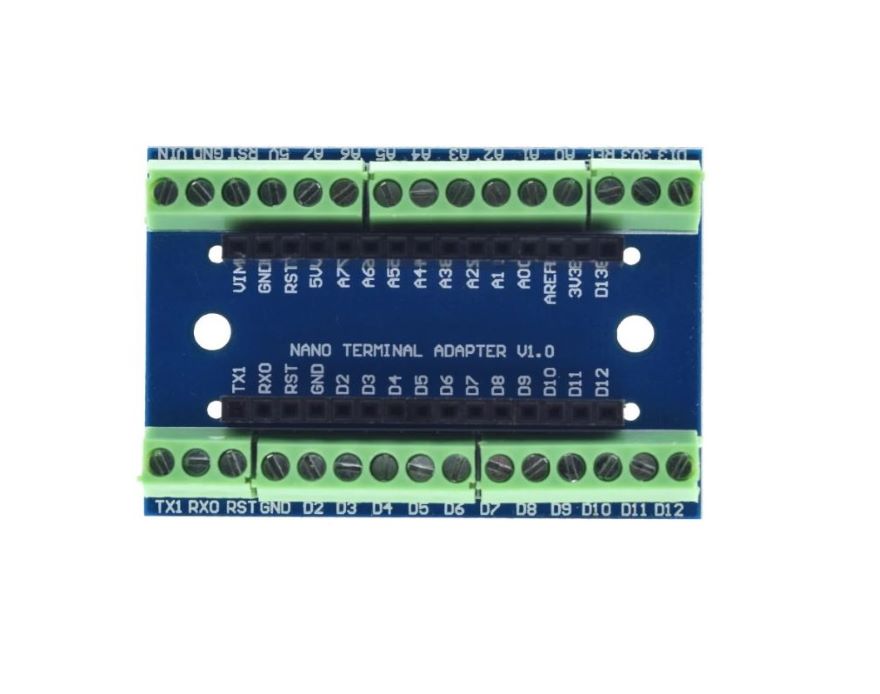

The Expansion Board NANO IO Shield provides a simple, reliable solution for expanding and connecting Arduino Nano to external components. This board features a 3-way header pin with SVG configuration, allowing for easy integration of sensors and actuators. Enjoy reliable data communication without the need for extensive wiring.

 The Expansion Board NANO IO Shield is an ideal solution for powering your Arduino Nano. It features a DC Barrel Jack that accommodates a standard 2.1mm DC adapter, a built-in protection diode, and capacitor to smooth out the ripple from the adapter, and an independent 3.3V voltage regulator providing up to 500mA of additional current for the Arduino Nano.

Technical Specification:

  • 14 I/O Pin (servo type with GND, power, and signal)
  • 8 analog Pin with power output and GND
  • 6 PWM Pin
  • 1 Servo power input
  • I2C expansion Pin
  • AREF output
  • 3.3V output
  • Size: 56.13mm x 41.91mm x 12.7(L* W* H)
