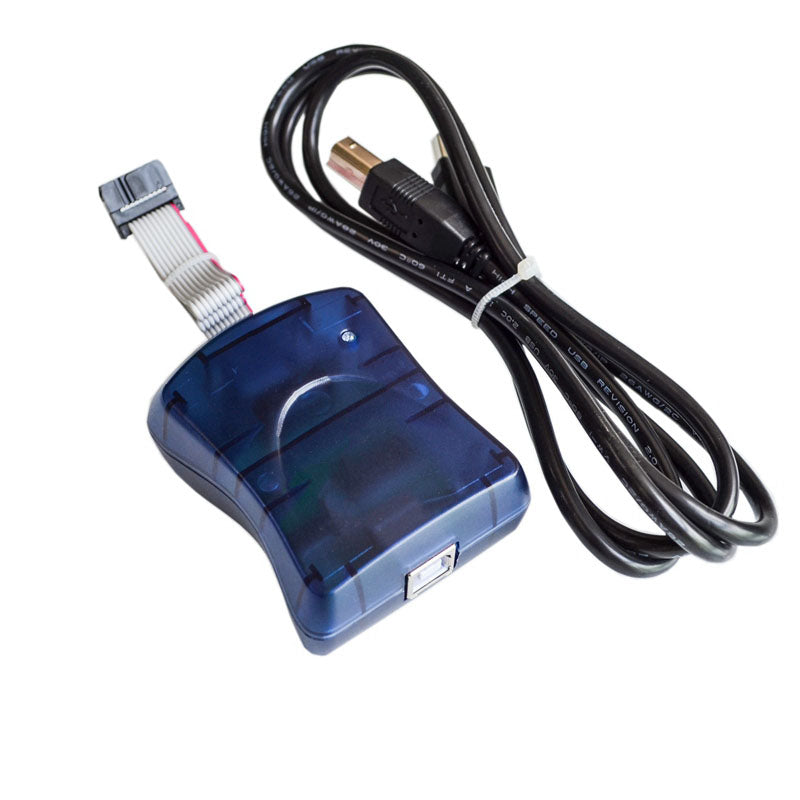

STK500 AVRISP MKII XPII Downloader Programmer

https://www.botshop.co.za/web/image/product.template/1664/image_1920?unique=a37a140
(0 review)

632.94 632.94 ZAR 744.63 VAT Included

647.50 VAT Included

Not Available For Sale

This combination does not exist.

Tool CPU

Internal Reference: MOD-197

AVRISP MKII programmer is an ultra-speed programmer for the whole Atmel AVR series. The programmer supports Mega AVR(ISP), Xmega AVR(PDI), and TinyAVR (TPI) interfaces. This is only a programmer (clone) and no debugger. It is compatible with Microchip Studio( the old Atmel AVR Studio).

Features:
  • It can support a wide range of ATMEL AVR microcontrollers.
  • It can work with Microchip Studio( the old Atmel AVR Studio).
  • It also comes in a compact size. (75mm x 57mm x 27mm)
Supported software
  • AVR Studio 6 or WINAVR(GCC) is used as a front-end software
  • Supports the program files generated by IAR, ICCAVR, CVAVR
Supported Device
  • USB AVRISP MKII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
  • Supports AT86RF401/AT89S51/AT89S52
The Supported Devices are shown below:
AT89S51 AT89S51 AT89S52 ATmega48 ATmega48P
ATmega8 ATmega88 ATmega88P ATmega8515 ATmega8535
ATmega16 ATmega162 ATmeg164P ATmega165 ATmega165P
ATmega168 ATmega168P ATmega169 ATmega169P ATmega32
ATmega324 ATmega324P ATmega325 ATmega324 ATmega324P
ATmega329P ATmega3290 ATmega3290P ATmega64 ATmega640
ATmega644P ATmega645 ATmega6450 ATmega649 ATmega6490
ATmega128 ATmega1280 ATmega1281 ATmega2560       ATmega2561
ATtiny12 ATtiny13 ATtiny15 ATtiny22 ATtiny2313
ATtiny24 ATtiny25 ATtiny26 ATtiny44 ATtiny45
ATtiny461 ATtiny84 ATtiny85 ATtiny861 AT90S1200
AT90S2313       AT90S/LS2323             AT90S/LS2343             AT90S/LS2333       AT90S4414
      AT90S/LS4433       AT90S/LS4434  AT90S8515 AT90S/LS8535 AT86RF401
AT90PWM2 AT90PWM2B AT90PWM3 AT90PWM3B AT90CAN32
AT90CAN64 AT90CAN128 AT90USB162 AT90USB646 AT90USB647
AT90USB1286 AT90USB1287



How to USE : https://www.youtube.com/watch?v=EsLOMdu50YU
