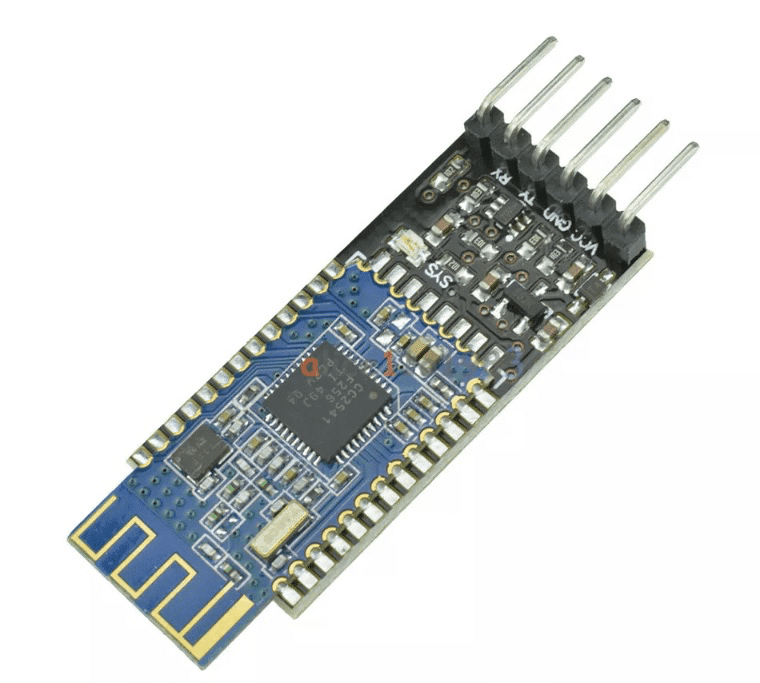

HM-10 Bluetooth Module with Logic Level Translator

https://newbrand.botshop.co.za/web/image/product.template/983/image_1920?unique=73b270f
​ ​ ​ ​ ​ (0 review)

R 153.64 153.64000000000001 ZAR R 153.64 VAT Included

R 157.18 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us
Wireless Module Comm BreakoutModule Bluetooth BT

Terms and Conditions

Internal Reference: MOD-159



HM-10 Bluetooth module


HM-10 Bluetooth module description

  • Most complete, most convenient, and most stable Bluetooth data transmission, remote control, and data acquisition module
  • Master-slave in one, transparent transmission, replacing serial port
  • Remote control, transparent transmission, MCU is unnecessary
  • Remote data acquisition, transparent transmission, MCU is unnecessary

The HM-10 Bluetooth module for Arduino (Master Slave) uses the TI CC2540 or CC2540 chip, configure 256KB space, and support AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.

Product Parameters

  • Bluetooth Protocol: Bluetooth Specification V4.0 BLE
  • USB Protocol: USB V2.0
  • Operating Frequency: 2.4GHz ISM band
  • Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
  • Transmitting Power: ≤4dBm
  • Sensitivity: ≤-84dBm at 0.1% BER
  • Transmission Rate: Asynchronous: 6 kbps
  • Synchronous: 6 kbps
  • Security Feature: Authentication and encryption
  • Support Service: Central & Peripheral UUID FFE0, FFE1
  • Power Supply: +3.3VDC 50mA
  • Operating Temperature: -5 ~ +65 Centigrade
  • Physical Dimension: 27mm x 13mm x 2.2 mm.
HM-10 Bluetooth Module with Logic Level Translator

Here is an excellent article to get you started: http://www.martyncurrey.com/hm-10-bluetooth-4ble-modules/
