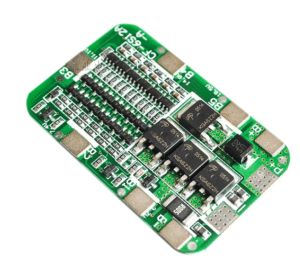

6S 22V 18650 lithium battery protection board
BMS Battery protection board for when you building some cool tech that needs batteries that don’t fail.
Product name: 6S 22V 12A Same Port Lithium Battery Protection Board
Discharge current: 12A
Rated voltage:22V
Charging current (Same port): ≤10A
Main circuit conduction internal resistance: ≤25MΩ
Charging voltage: 25.2V
Short circuit protection: 250US
Working temperature range: -30℃~+80℃
Working power consumption: ≤50UA
Overcharge: 4.25±0.025V
Over-discharge: 2.7±0.1V
Product size: 50*32*3mm
