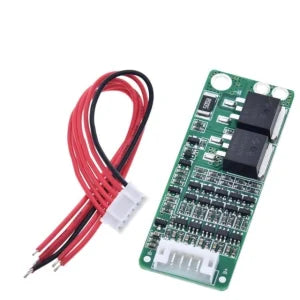

5S 18.5V 21V 15A BMS Li-ion Battery Charger Protection Board

https://www.botshop.co.za/web/image/product.template/378/image_1920?unique=ed6fc98
(0 review)

180.78 180.78 ZAR 180.78 VAT Included

157.20 VAT Included

Not Available For Sale

    This combination does not exist.

    Module Power Batteries

    Internal Reference: MOD-151


    5S 18.5V 21V 15A BMS Li-ion Battery Charger Protection Board

    • Size: approx. 60*23mm
    • Charging voltage: 21 V
    • Charge MOS pressure value: 35 V
    • Discharge MOS pressure value: 35 V
    • Charging current: 56 A
    • Continuous discharge current: 15 A
    • Over current protection: 50/55/60 A
    • Over current protection delay: 20/25/30mS
    • Single section since the power consumption: 30uA
    • Single section between the power consumption: 3uA
    • Single section over charge detection voltage: 4.18- /4.22V
    • Over charge recovery voltage 4.05- 4.15 V
    • Over charge detection delay: 0.5/1.0/2.0S
    • Single section over discharge detection voltage: 2.75-2.85 V
    • Over discharge recovery voltage: 2.90-3.20 V
    • Over discharge detection delay: 0.5-2.0S
    • Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto
    • recovery Short circuit protection delay 200/500/600uS
    • The normal working state of B- to P- resistance: 5mΩ
    • Continuous 15A current maximum temperature rise: 25 °
    • Working environment (humidity) relative humidity: ≥98% (long-term stability under humidity)
    • Working environment (temperature) -30 ~ 80°(in the lower temperature range for long-term stability)

      Please Note:

      Please allow 1-5mm errors due to manual measurement
      Item color displayed in photos may be showing slightly different on
      your computer monitor since monitors are not calibrated same
