TDA7498 Class D amplifier board 100W

https://www.botshop.co.za/web/image/product.template/1690/image_1920?unique=d43b490
(2 reviews)

378.15 378.15000000000003 ZAR 444.89 VAT Included

386.86 VAT Included

Not Available For Sale

This combination does not exist.

Accessory

Internal Reference: MOD-137


Wanna build your own amplifier for your home entertainment system etc.?

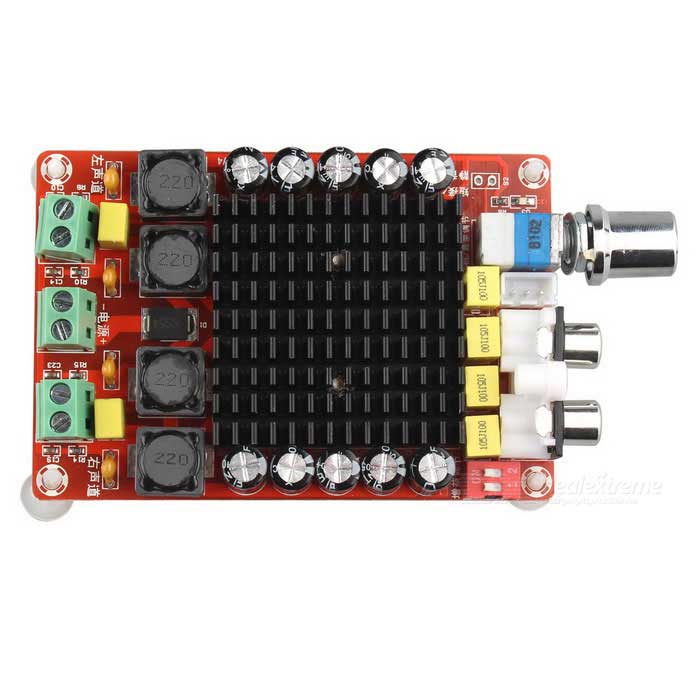

TDA7498 Class D amplifier board 100W

Output power: 100W + 100W (VCC = 32V, RL = 4 ohm, THD = 10%)
Wide (14-30V) single power supply
High efficiency (85%)
Quad gain selectable (21.6dB, 27.6dB, 31.1dB, 33.1dB)
Using differential input to reduce common-mode noise significantly
With turn-off mode and silent mode
With intelligent protection
With overheating protection

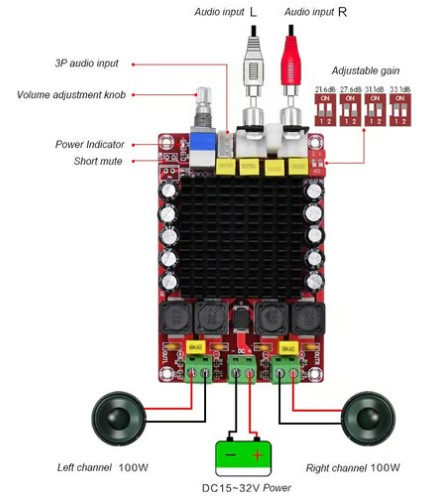

TDA7498 Class D amp diagram

TDA7498 Class D amplifier board 100W Specification:

Product name

Audio amplifier board

Input voltage

DC15-32V

Output power

100W * 2

Output impedance

4-8ohm

Line type

Class D

Chip selection

TDA7498

Harmonic distortion

Po = 1W / 0.05%

Frequency response range

18-100KHz

Switching frequency

360KHz

Signal to noise ratio

100db

Size

96 * 64 * 25mm
