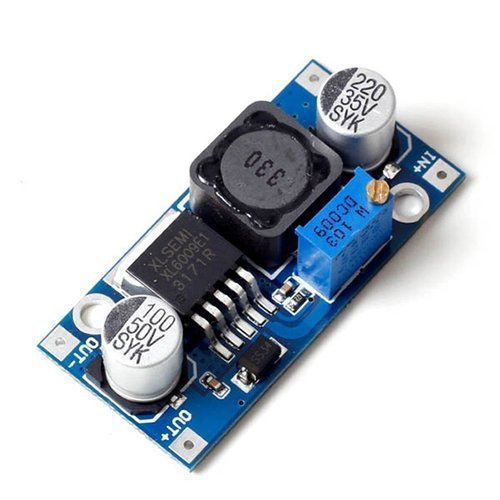

XL6009 boost module

XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage and high efficiency. The module uses the latest high-frequency switching technology XL6009E1 as the core chip, performance is much better than the first generation of technology LM2577. With this module, you can boost the voltage to a higher output voltage than your input voltage quite easily.

Xl6009 boost module Specification:

The input voltage Minimum of 5v to  Max  32 v
The output voltage is adjustable between 5 v ~ 35 v
The output current  4A (Max)
Conversion efficiency  92%(highest)
The output ripple  < 30 mv
Switching frequency  65 kHz
Working temperature  - 45°~ + 85°
The size :43 * 21 * 14 mm

Please Note:

This Unit doesn't work well with an input voltage of 5V and below, the threshold for boosting the converter is too low and may cause it to boost over 50V unregulated

The trim pot that is used to adjust the output of the module needs to be turned quite a few times before you can see a change in the output.
