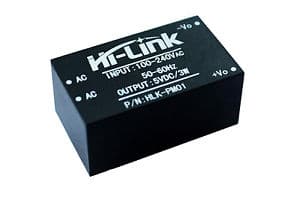

HLK-PM01 ac-dc 220v to 5v mini power supply module

(1 review)

113.61 113.61 ZAR 113.61 VAT Included

116.22 VAT Included

Not Available For Sale

This combination does not exist.

Power PowerSupply

Internal Reference: MOD-095

HLK-PM01-DC 220V to 5V mini power supply module

Environment Condition:
-Operation Temperature: -20+60
-Store Temperature: -40+80
-Relative humidity: 595 %
-Atmospheric pressure: 80106 Kpa
-Sea level elevation: 2000 m
-Vibration: Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X, Y, Z axes

Electrical Characteristic:

  • Input characteristics (test at room temperature 20 ).
  • Rated input voltage: 100-240 Vac
  • Input voltage range: 90-264 Vac
  • Maximum input current: 0.2 A
  • Input current surge: 10 A
  • maximum input voltage: 270 Vac
  • Enter slow start: 50 mS
  • Input Low Voltage Efficiency: Vin=110VAcOutput full-load69 %
  • Input High Voltage Efficiency: Vin=220VAcoutput full-load70 %
  • Long-term reliability: MTBF100.000 h
  • Output voltage: 5 Vdc
  • Short-term maximum output current: 1000 mA
  • The maximum output current for a long time: 600 mA
  • Voltage Regulation: 0.2 %
  • Load Regulation: 0.5 %
  • Output ripple and noise: (MVP-p) 50 mV
  • Output overcurrent protection: 150-200% of the output maximum load A
  • Output short circuit protection: Direct short circuit at the normal output, automatically resume normal -operation after a short circuit removal

Safety Characteristics:
-Designed with the input of 0.5A UL certified insurance;
-PCB board using double-sided copper-clad plate production, material for the 94-V0 fire rating level;
-Safety standards: Compliance with UL1012, EN60950, UL60950
-Insulation voltage: I / P-O / P: 2500VAC
-Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 70% RH
-Conduction and radiation: comply with EN55011, EN55022 (CISPR22)
-Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
-RF radiation Immunity: IEC / EN 61000-4-3

HLK-PM01 AC-DC 220V to 5V mini power supply module
