Module

Internal Reference: MOD-083

GSM Module.

SIM800L is a miniature cellular module that allows for GPRS transmission, sending, and receiving SMS. Low cost and small footprint and quad-band frequency support make this module the perfect solution for any project that requires long-range connectivity.

The SIM800 series module supports the HyperText Transfer Protocol application. Which provides a mode to the alternative HTTP server. The basic application contains GET, POST, and HEAD methods; it also supports proxy servers, redirection, and broken transfer resuming functions.

The SIM800 series module supports File Transfer Protocol applications. Which provides a mode to interact with the FTP server. The basic application contains GET, and PUT methods, it also supports the broken transfer resuming function. The PUT method supports APPE, STOR, and other modes.

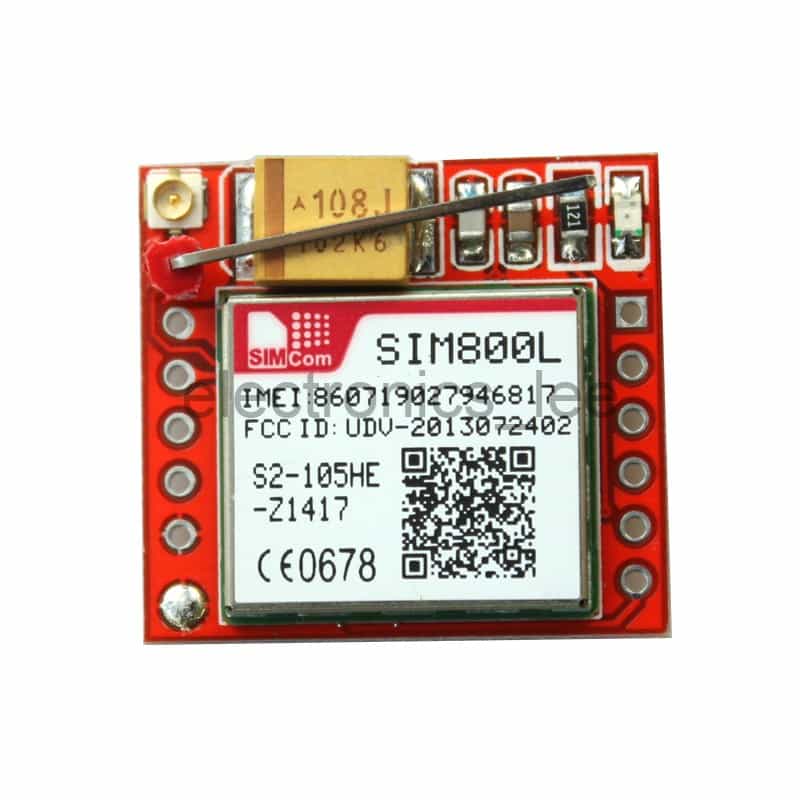

GSM Module
GSM Module diagram

GSM Module Specification:

  • Power supply: voltage range: 3.4V`4.4V
  • Power saving: SLEEP mode is 0.7mA (BS-PA-MFEMS=9).
  • Band: GSM type: small mobile station
    • four frequency: EGSM900, DCS1800, GSM850, and PCS1900, can automatically search the four frequency bands. You can also set the frequency band through the AT command.
    • Accord GSM Phase 2/2+
  • Transmit power:
    • Class 4 (2W): GSM850, EGSM900
    • Class 1 (1W): DCS1800, PCS1900
  • GPRS connection features:
    • GPRS time slot default is 12
    • GPRS time slot default is 12
    • GPRS mobile station level is B
  • Temperature range:
    • Working temperature: -40 ℃ ~ +85 ℃
    • Storage temperature: -45 ℃ ~ +90 ℃
  • GPRS data characteristics:
    • GPRS data downlink transmission: maximum 85.6 kbps
    • GPRS data uplink transmission: maximum 85.6 kbps
    • Coding formats: CS-1, CS-2, CS-3, and CS-4
    • Support for PAP (password authentication protocol) protocol for PPP connections
    • Embedded TCP/IP protocol
    • Support packet broadcast control channel (PBCCH)
    • CSD transmission rate: 2.4,4.8,9.6,14.4kbps
    • Support unstructured supplementary data service (USSD)
  • Circuit switching (CSD):
    • CSD transmission rate:  2.4,4.8,9.6,14.4kbps
    • Support unstructured supplementary data service (USSD)
  • Short message (SMS): SIM card interface: support SIM card: 3V, 1.8V
    • MT, MO, CB, Text, and PDU models
    • Short message (SMS) storage device: built-in SIM card
  • Antenna interface: antenna pad
  • Speech coding mode:
    • Half rate (ETS 06.20)
    • Full rate (ETS 06.10)
    • Enhanced full rate (ETS 06.50 / 06.60 / 06.80)
    • Adaptive multi-rate (AMR)
    • Echo cancellation
    • Noise suppression
  • Serial port: Debug
  • port: For debugging
    • Supporting the full function of the standard serial port
    • Transmission rate support from 1200bps to 115200bps
    • AT command and data can be sent through the serial port
    • Support for RTS/CTS hardware flow control, and can be opened or closed by the software flow control function
    • Supports GSM 07.10 protocol of the serial port multiplexing function
    • Support automatic baud rate detection function from 1200bps to 115200bps
    • Software upgrade
  • Communication record management:
  • Support types: SM, FD, LD, RC, ON, MC.
  • SIM application toolkit: Support class SAT 3, GSM 11.14 Release 99
  • Real-time clock (RTC): Support
  • Time function: AT command set
  • Software upgrade: Upgrade software via serial port or USB port
