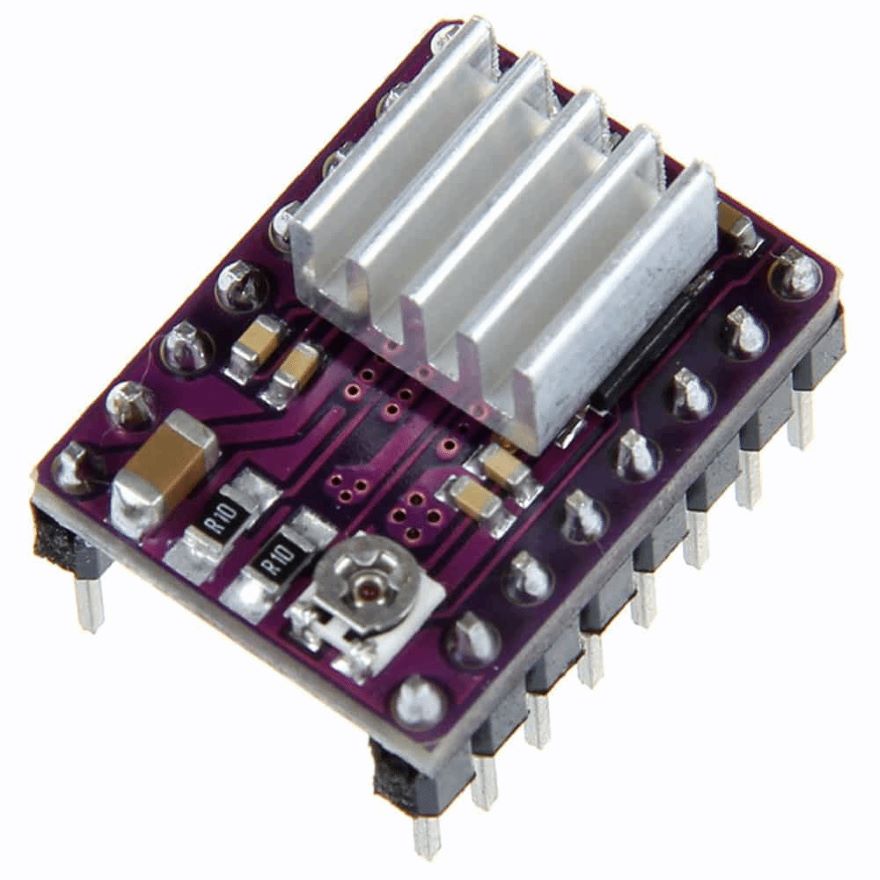

DRV8825 Stepper motor Driver module - 2A

https://www.botshop.co.za/web/image/product.template/752/image_1920?unique=ed6fc98
(0 review)

48.88 48.88 ZAR 48.88 VAT Included

42.50 VAT Included

Not Available For Sale

This combination does not exist.

Stepper Module Mech ElectroMechanical Driver

Internal Reference: MOD-078


DRV8825 Stepper Motor Driver


Description:

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro stepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 stepper motor driver features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • 45 V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and over load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB
  • Module size, pinout, and interface match those of the A4988 stepper motor driver carriers in most respects
