Power supply module 220V AC to 24V DC 4A 120W

https://www.botshop.co.za/web/image/product.template/1433/image_1920?unique=ed6fc98
(8 reviews)

190.21 190.21 ZAR 190.21 VAT Included

165.40 VAT Included

Not Available For Sale

This combination does not exist.

Power PowerSupply Module

Internal Reference: MOD-073

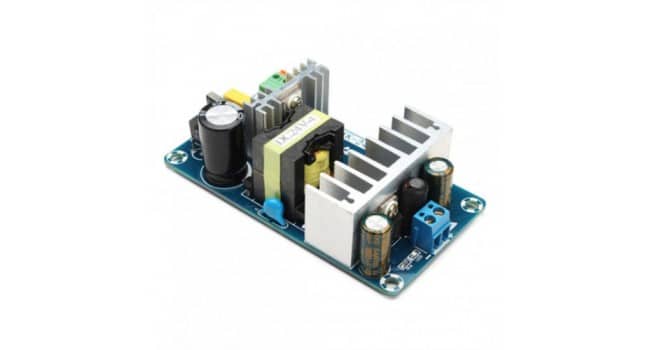

Power supply module 220V AC to 24V DC 4A 120W

This module covert AC to 24V 4A DC. It has built-in over-voltage, over-current, and short-circuit protection. If you want to build, for example, a bench power supply this unit will supply the voltage you need as well as lots of amps. From here all that is required is an adjustable voltage regulator to set the voltage you require. We have many different voltage regulators in our power category, some with voltage displays and even those where you can set both voltage and current. As an example, we have this voltage/current regulator with a display that will be one amazing supply 5A Constant Current LED Driver and  Battery Charger Power Module With Display

Power supply module 220V AC to 24V DC 4A 120W Quick Spec
Power Model: XK-2412-24
Protection: overvoltage overcurrent circuit protection
AC input: AC85-265V (Global common)
AC frequency: 50HZ/60HZ
Output voltage: DC 24V
Output Current: 4A (Max Peak 4A)
Output Power: 120W
Modulation: Pulse width modulation
Dimension: 107 x 57mm
