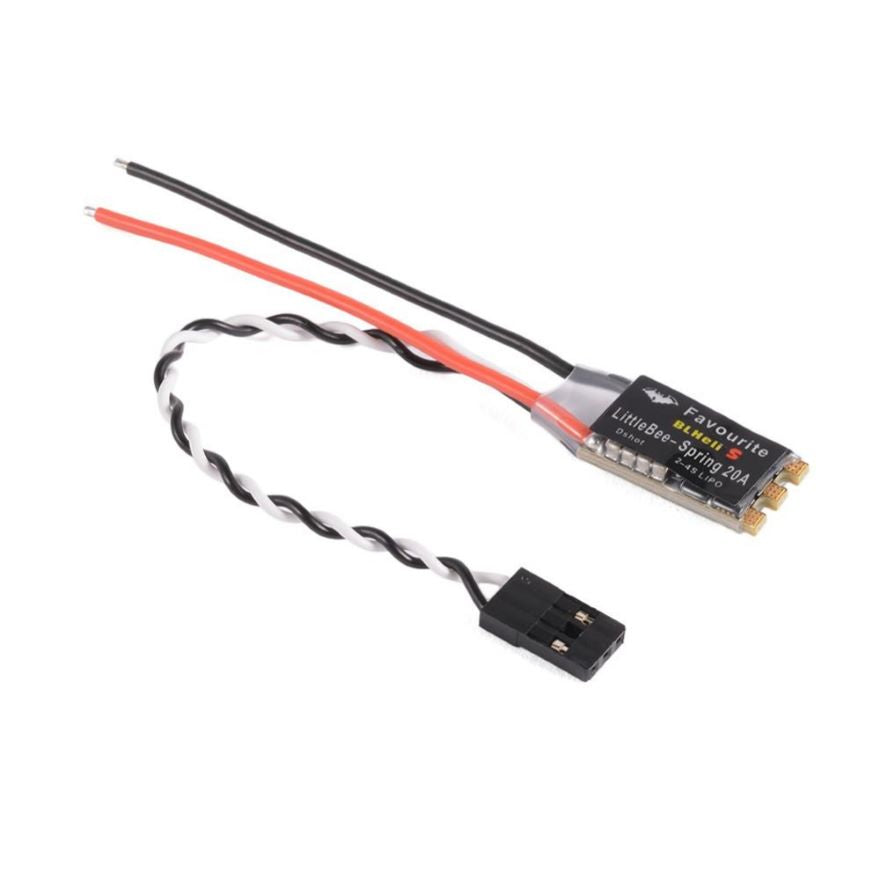

BLHeli-S FPV ESC 20A Brushless Speed Controller

https://www.botshop.co.za/web/image/product.template/598/image_1920?unique=a372cf3
(0 review)

368.48 368.48 ZAR 368.48 VAT Included

376.97 VAT Included

Not Available For Sale

This combination does not exist.

Module ElectroMechanical Driver

Internal Reference: MOD-061

This new BLHeli-S 20a ESC is one of the new generations of ESC's that feature the BLHeli-S firmware. The hardware and software advancements in BLHeli-S are responsible for an ultra-smooth throttle response, which ultimately translates into the smoothest handling flying experience to date.

The BLHeli-S 20a ESC have there own dedicated Driver Chip with the blheli_S compatible bootloader, and also come with BL-Heli_S pre-installed!

Specifications:

  • Input Voltage: 2-4s Lipo
  • BEC: N/A OPTO (No BEC)
  • Size: 23.5×12.5x3mm
  • Firmware: BLHeli boot loader & BL Heli-S firmware Supports Mulitshot OneShot125 Oneshot42
  • Weight: 4g
  • Current: 20A
  • Burst Current 10seconds: 25A
  • MOS: Both low and high side fets are Nfets
BLHeli-S FPV ESC 20A Brushless Speed Controller diagram 1
BLHeli-S FPV ESC 20A Brushless Speed Controller diagram
