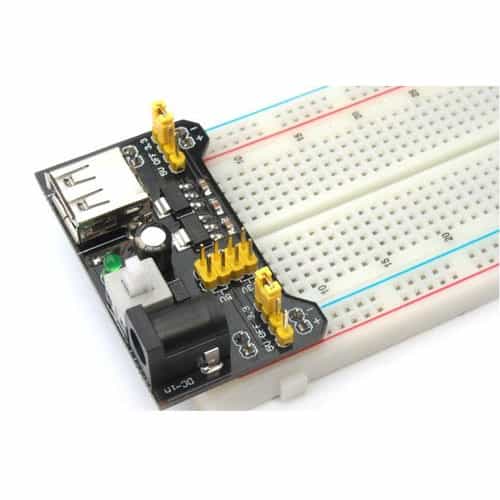

Breadboard Power Module

https://learn.botshop.co.za/web/image/product.template/613/image_1920?unique=09f7b98
(0 review)

62.10 62.1 ZAR 62.10 VAT Included

54.00 VAT Included

Not Available For Sale

This combination does not exist.

Prototype Electronic Module Power

Internal Reference: MOD-035

(Please Note: Breadboard is not included if you require a breadboard we have 3 sizes breadboards)

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard. It can be either powered from 6-12 DC2.1 power jack or from USB power. The maximum current it can provide is 500mA.

SPECIFICATION

Input voltage: 6-12V (Power Jack) 5V (USB)
Output voltage:3.3V/5V
Output current:500mA
On/Off switch
Power status LED
Pin Head 5/3.3V output
Central positive DC2.1 power jack

DOCUMENTS

Schematics
