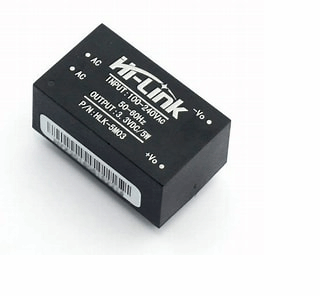

HLK-5M03 ac-dc 220v to 3.3v

https://www.botshop.co.za/web/image/product.template/980/image_1920?unique=f765655
(0 review)

93.30 93.3 ZAR 109.77 VAT Included

95.45 VAT Included

Not Available For Sale

This combination does not exist.

PowerSupply Semiconductor Power

Internal Reference: MOD-032

HLK-5M03 AC-DC 220V to 3.3V

Environment Condition:
-Operation Temperature: -20+60
-Store Temperature: -40+80
-Relative humidity: 595 %
-Atmospheric pressure: 80106 Kpa
-Sea level elevation: 2000 m
-Vibration: Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X, Y, Z axes

Electrical Characteristic:

  • Input characteristics (test at room temperature 20 ).
  • Rated input voltage: 100-240 Vac
  • Input voltage range: 90-264 Vac
  • Maximum input current: 0.2 A
  • Input current surge: 10 A
  • maximum input voltage: 270 Vac
  • Enter slow start: 50 mS
  • Input Low Voltage Efficiency: Vin=110VAcOutput full-load69 %
  • Input High Voltage Efficiency: Vin=220VAcoutput full-load70 %
  • Long-term reliability: MTBF100.000 h
  • Output voltage: 3.3 Vdc
  • Short-term maximum output current: 500 mA
  • The maximum output current for constant use: 250 mA
  • Voltage Regulation: 0.2 %
  • Load Regulation: 0.5 %
  • Output ripple and noise: (MVP-p) 50 mV
  • Output overcurrent protection: 150-200% of the output maximum load A
  • Output short circuit protection: Direct short circuit at the normal output, automatically resume normal -operation after a short circuit removal
