16-bit 4 channel ADC module I2C ADS1115

https://www.botshop.co.za/web/image/product.template/131/image_1920?unique=0046b26
(1 review)

96.42 96.42 ZAR 137.74 VAT Included

119.77 VAT Included

Not Available For Sale

This combination does not exist.

Sensors Module

Internal Reference: MOD-015

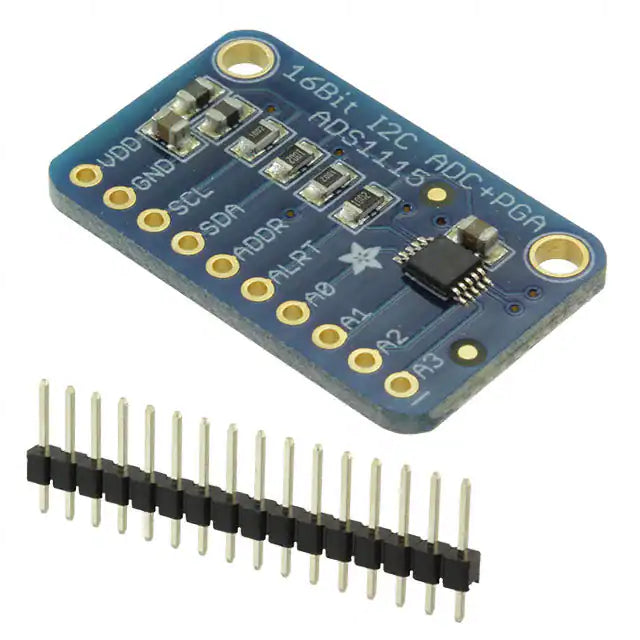

16-bit 4 channel ADC module

Sometimes the Arduino Uno or ESP Wemos analog pins are just not enough. This unit allows you to add 4 more analog inputs to your microcontroller using the easy to use I2C interface of your microcontroller.

Even better, it gives you higher precision, as an example, than the Arduino analog pins. This ADC module also comes with a programmable gain amplifier to boost your input. Uses the ADS115 IC

ADC module Features:
For microcontrollers without an analog-to-digital converter, or when you want a higher-precision ADC. This ADS1115 provides 16-bit precision at 3300 samples second over I2C.
The chip can be configured as 4 single-ended input channels or two differential channels.
As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.
This ADC can run from 2V to 5V power/logic, measure a large range of signals and easy to use.
It is a great general purpose 16 bit converter.
The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet.
Interfacing is done via I2C.
The address can be changed to one of four options, so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single ended inputs.

Specifications:
Wide supply range: 2.0V to 5.5V
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
Programmable data rate: 128 to 3300 Samples/Second
Internal low-drift voltage reference
Internal oscillator
Internal PGA
I2C interface: 4-Pin-Selectable Addresses
Four single-ended or two differential inputs
Programmable comparator
This board chip uses I2C 7-bit addresses between 0x48-0x4B
PCB size: 2.55 x 0.90cm / 1.00"" x 0.35"" (L*W)

Datasheet:https://cdn.shopify.com/s/files/1/0647/7702/7824/files/ads1115.pdf?v=1656405968
