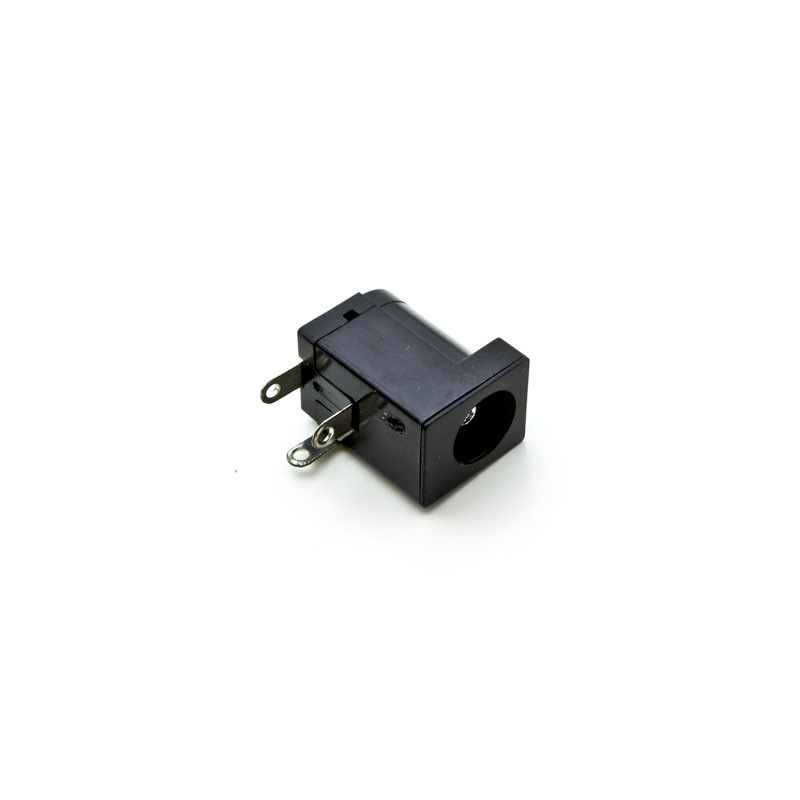

Right-Angle PCB-Mount DC Barrel Jack (5.5 × 2.1 mm)

A through-hole, board-mount power connector for standard 5.5 mm × 2.1 mm DC plugs. The black thermoplastic housing carries a female barrel socket at 90° to the PCB, with three solder lugs:

• Pinout
  • Center contact (positive)
  • Outer shell (ground)
  • Switch lug (disconnects an internal pad when no plug is inserted)
• Mechanical
  • Barrel size: 5.5 mm OD, 2.1 mm ID
  • Orientation: 90° right-angle
  • Mounting: PCB through-hole; body dimensions ~15 mm length × 10 mm height × 12 mm depth
  • Terminal style: 2 flat quick-connect lugs + 1 switch lug (0.8 mm thickness)
• Electrical
  • Voltage rating: ≤ 24 VDC
  • Current rating: 1 A typical
  • Insulation resistance: ≥ 100 MΩ @ 500 VDC
  • Dielectric withstand: 500 VAC for 1 min
• Materials
  • Housing: Black PBT (UL94V-0)
  • Contacts: Brass with tin plating
  • Operating temperature: –25 °C to +85 °C
