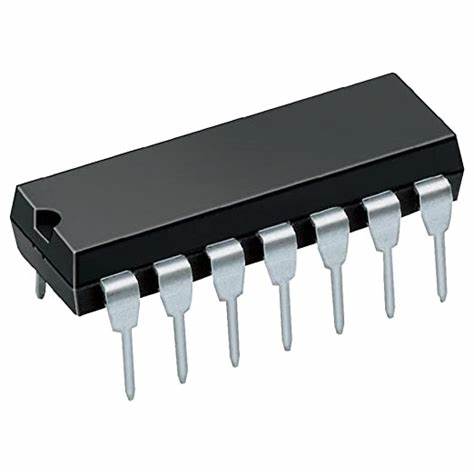

SN74LS00N QUAD 2-input positive NAND gate

https://www.botshop.co.za/web/image/product.template/1819/image_1920?unique=1506c9d
(0 review)

9.46 9.46 ZAR 9.46 VAT Included

9.68 VAT Included

Not Available For Sale

This combination does not exist.

Component Electronic Electronics

Internal Reference: EC-277



SN74LS00N QUAD 2-INPUT POSITIVE NAND GATES

 If you are working on a digital logic level circuit, NAND gates are an absolute must to have. Even though these gates can be built making use of AND gates in combination with inverter gatesNAND gates are very common in digital logic level circuits. They reduce the complexity and the size of your circuit quite a bit.

The LS family of logic gates can communicate with the HCT family, which are the more common family since they are able to communicate with almost all the other families of logic level gates. This makes it convenient, because you do not have to stick to a specific family, and you can mix the families as needed when some gates are not available at a store near you.

Technical specifications:

Supply voltage 4.75 - 5.25V
High level input voltage 2V
 Low level input voltage 0.8V
Max output current 100mA





Pin layout:

SN74LS00N pin layout
