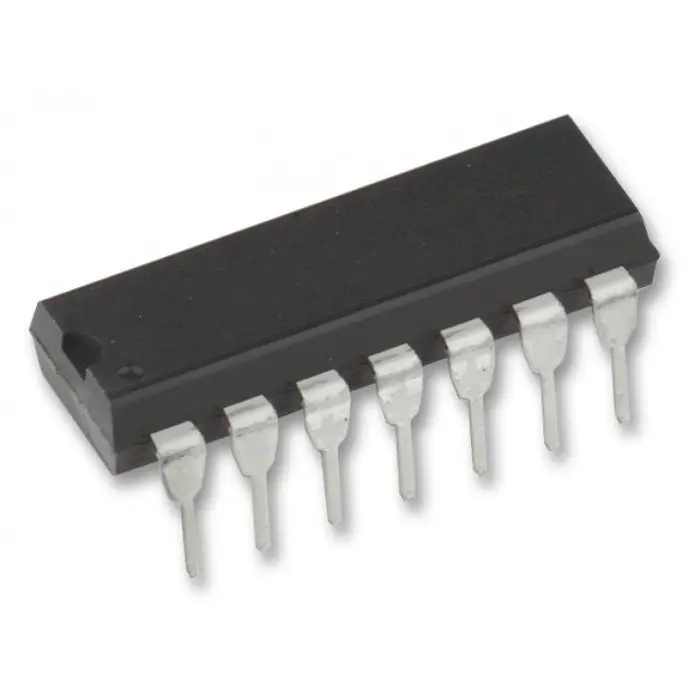

SN74LS74N dual d-type flip flop

https://www.botshop.co.za/web/image/product.template/1827/image_1920?unique=1506c9d
(0 review)

2.24 2.24 ZAR 2.63 VAT Included

2.29 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: EC-275


SN74LS74N DUAL D-TYPE FLIP FLOP

Flip flops are very common components found in digital circuits that has to work with memory. Flip flops enable you to save data that has been sent to it from an external logic circuit, or from a shift register. One of the most common applications where flip flops and shift registers are used together is when external circuitry is used to randomize the output of a shift register and then the flip flop is used to store the output data of the shift register.

Technical information:

Max supply voltage

5.25V

Max input voltage5.25V
Min high level input voltage2V
Max low level input voltage

0.8V

Pin layout:


Extra resources:

Data sheet for SN74LS74N
