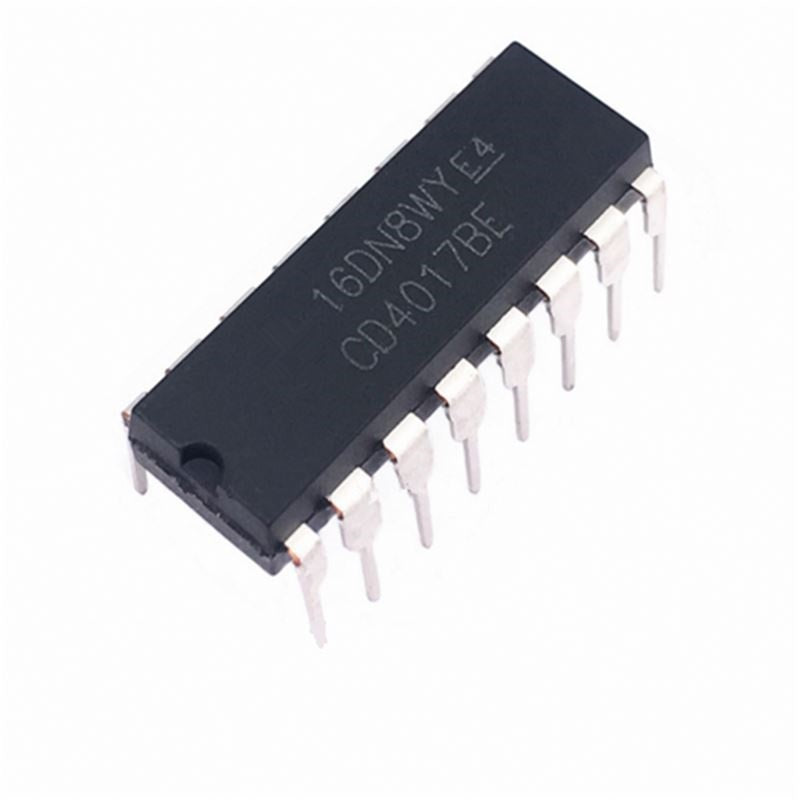

Digital Counter CD4017BE

https://www.botshop.co.za/web/image/product.template/726/image_1920?unique=1c3b060
(0 review)

15.53 15.530000000000001 ZAR 15.53 VAT Included

13.50 VAT Included

Not Available For Sale

This combination does not exist.

Component Electronic Electronics

Internal Reference: EC-231

Digital Counter CD4017BE

Digital counters are commonly used in digital circuits that need to make use of a high-level output for one full clock cycle. This specific digital counter has 10 output pins that each gives a high output after the previous pin switches to a low output. Below is a time diagram that shows the output signals on the various pins as the clock counts up.

Technical specifications:

 Supply voltage 3V - 18V
Max clock frequency 11MHz
Output voltage 5V - 15V

Pin layout:

Timing diagram:

As you can see in the diagram above, each output pin switches on after the previous pin switches off after the clock has completed one full cycle.

Extra resources:

Datasheet for CD4017BE
