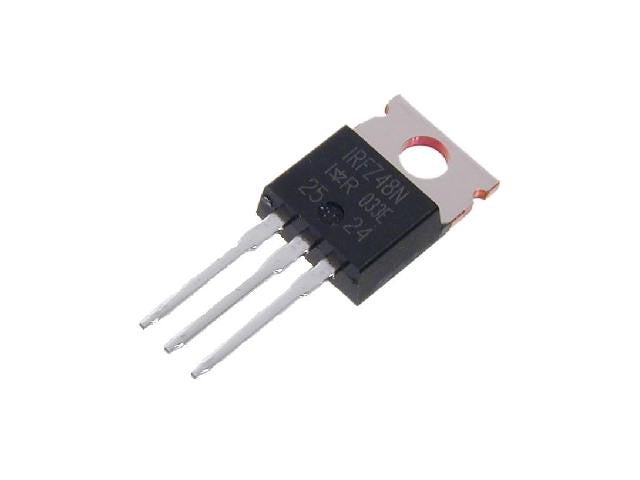

IRFZ48NPBF mosfet

https://www.botshop.co.za/web/image/product.template/1051/image_1920?unique=1c3b060
(0 review)

22.48 22.48 ZAR 22.48 VAT Included

23.00 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: EC-223

IRFZ48NPBF MOSFET

MOSFETs are used in logic applications that has to function under high current conditions. Because transistors use a current factor to estimate the current that can be produced on the emitter pin, but this can cause the logic side of your circuit to shut down when the transistor require too much current for the logic to handle. This is however not the case with a MOSFET. MOSFETs require very little current on the gate pin since they switch on with a specific voltage. This makes MOSFETs ideal to be used with logic level circuits that can only provide  a logic high level with very little current. This specific MOSFET  is a N-channel MOSFET which means that it is best to use these MOSFETs as low side switches which means that they should be used to switch the ground on the circuit on and off.

Technical specifications:

Max drain source voltage

55V

Max drain gate voltage

55V
Gate source voltage20V
Max drain current64V

Max pulsed drain current

210A
Max operating temperature175°C

Pin layout:

Extra resources:

Datasheet for IRFZ48NPBF
