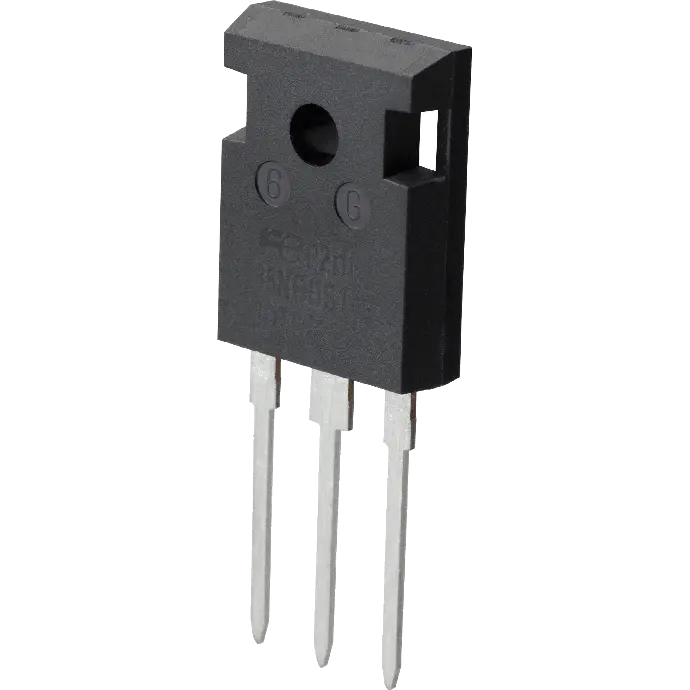

SPW47N60C3 N-CHANNEL MOSFET

https://www.botshop.co.za/web/image/product.template/1873/image_1920?unique=1c3b060
(0 review)

110.83 110.83 ZAR 130.39 VAT Included

113.38 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: EC-211

SPW47N60C3 N-CHANNEL MOSFET

Because of the ruggedness and switching method of MOSFETs, they are commonly used in applications that require fast and easy switching and in circuits that need to be able to operate under high current conditions. Circuits that contains MOSFETs include motor drivers, inverters, induction heaters etc. One of the big advantages of MOSFETs are that they drain very little current from the logic circuit used to switch it on and off. They simply have to sense the correct voltage on the gate pin in order for it to become open and allow current to flow between the drain and the source pins of the MOSFET.

Technical specifications:

Max drain source voltage

600V
Gate source voltage20V
Max continuous drain current47A
Max pulsed rain current141A
Max operating junction temperature

150°C

Min gate threshold

2.1V

Max gate threshold3.9V

Extra resources:

Datasheet for SPW47N60C3
