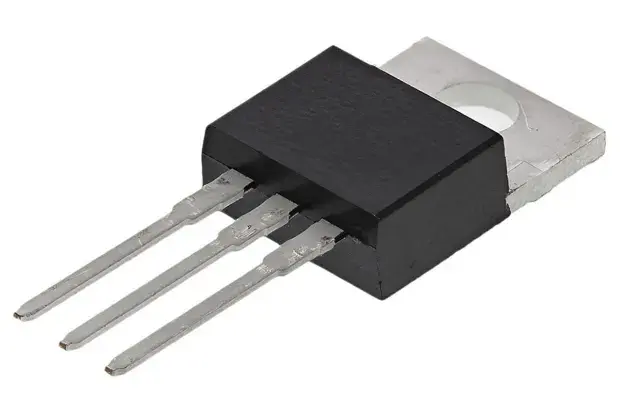

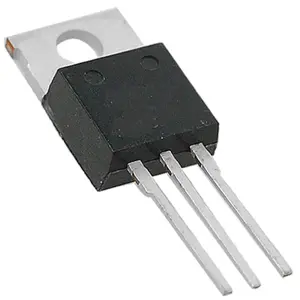

TIP31C Transistor

https://www.botshop.co.za/web/image/product.template/1713/image_1920?unique=d9d42b5
(0 review)

5.77 5.7700000000000005 ZAR 6.80 VAT Included

5.91 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: EC-193


TIP31C Transistor

Transistors are switching components that also has the ability to switch with analog signals. Most low current circuits that require very low voltage drop and require small switching components has transistors connected to them. This is however one of the bigger transistors in the market and has the ability to switch higher voltages on and off with a logic level voltage switching circuit.

Technical specifications:

Collector emitter voltage

100V
Collector base voltage100V
Emitter base voltage5V
Continuous collector current3A
Peak collector current5A
Base current1A
Operating temperature-65°C ~ 150°C

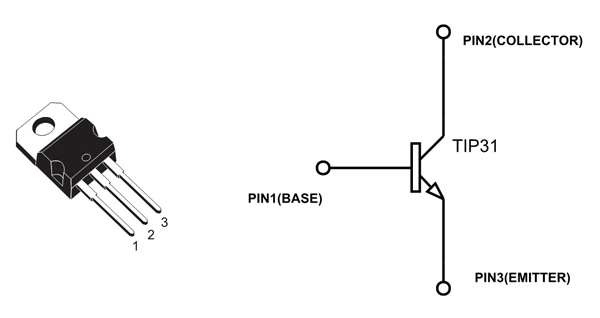

Pin layout:

Extra resources:

Datasheet for TIP31C
