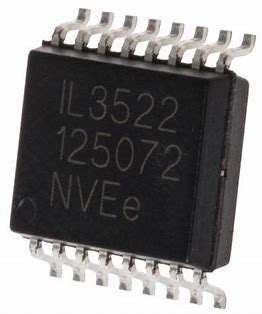

NVE Line Transceiver IL3522E, 16-Pin SOIC

https://www.botshop.co.za/web/image/product.template/1353/image_1920?unique=ba44a53
(0 review)

77.51 77.51 ZAR 91.18 VAT Included

79.29 VAT Included

Not Available For Sale

This combination does not exist.

Component Electronic Other New Arrivals Electronics

Internal Reference: EC-170

NVE Line Transceiver IL3522E, 16-Pin SOIC

This NVE line transceiver is a galvanically isolated high speed differential bus with the ability to do bidirectional data communication. What makes this NVE line transceiver impressive is that is has good data integrity over long cable lengths at data transfer rates of up to 40Mbps. It also has current limiting to protect your device from short circuits on external circuits, and it has thermal shutdown capabilities to protect your device from over heating.

Technical specifications:

 Supply voltage 3V - 5V
Delivered voltage 2.3V
Data rate 40Mbps
Propagation delay 20ns
ESD protection 15kV
Max digital output current 5mA
High level digital input voltage 2.4V / 3V
High level digital output voltage 3.3V / 5V


Pin layout:

NVE pin layout

Extra resources:

To go to the data sheet, klick here
