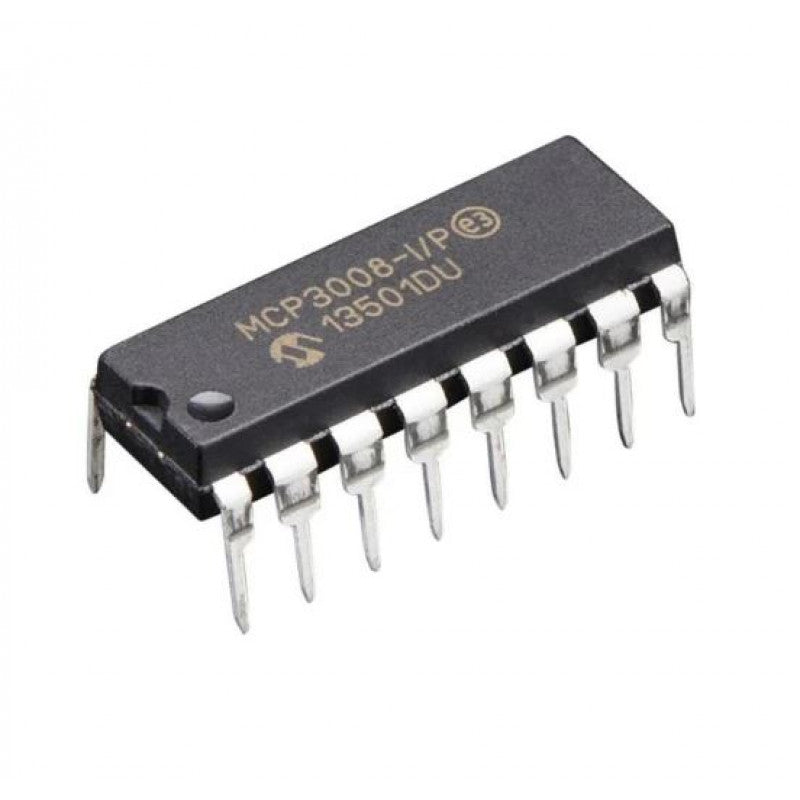

MCP3008 DIP16 MCP3008-I/P DIP-16 DIP

Are you a hobbyist looking for a high-quality integrated circuit? Look no further than the MCP3008 DIP16! This integrated circuit offers a high-performance, low-power SAR architecture with up to eight 10-bit ADCs.

Microchips bring you a 16-pin PDIP packaged, 10-bit and 8-channel ADC. The MCP3008 is a high-performing and low-power-consuming ADC. The MCP3008 can also be programmed to cater to four pseudo-differential input pairs or eight single-ended inputs. Differential non-linearity (DNL) and integral non-linearity (INL) are spaced at ±1 LSB.

The MCP3008 is a low-cost 8-channel 10-bit analog-to-digital converter. The precision of this ADC is similar to that of an Arduino Uno, and with 8 channels you can read quite a few analog signals from a Microcontroller. The MCP3008 features 200k samples/second, 8 input channels, low power consumption (5nA typical standby, 425µA typical active), and is available in 16-pin PDIP and SOIC packages.

Pin Out

The above pinout shows us the pin out of the MCP3008 DIP16 MCP3008-I/P DIP-16 DIP chip as well as the functions on some of the pins of the MCP3008 DIP16 MCP3008-I/P DIP-16 DIP chip.

Simple Wiring Diagram

The wiring diagram above is just an example of how to connect the MCP3008 DIP16 MCP3008-I/P DIP-16 DIP chip to a potentiometer to be able to get a digital reading from an analog device.


  • 10-bit resolution
  • Four pseudo-differentials or eight single-ended inputs
  • Small PDIP size makes for great use in embedded applications
  • SPI serial interface
  • On-chip sample and hold
  • Supplier operation – 2.7V up to 5.5V
  • ±1 Both DNL and INL
  • 200 tips sample rate at 5V
  • Temperature range from -40°C up to +85°C

MCP3008 DIP16 MCP3008-I/P DIP-16 DIP Specification

  • Architecture: SAR
  • Number of ADCs: 8
  • Resolution: 10-bit
  • Sampling Rate: 200ksps
  • Input Signal Type: Pseudo Differential, Single Ended
  • Input Type: Voltage
  • Mounting Type: Through Hole
  • Package Type: PDIP
  • Pin Count: 16
  • Integral Nonlinearity Error: ±1LSB
  • Digital Interface Type: Serial (SPI)
  • Typical Single Supply Voltage: 5 V
  • Maximum Operating Temperature: 85 °C
  • Dimensions: 19.05 x 6.35 x 3.3mm
  • Minimum Operating Temperature: -40 °C
