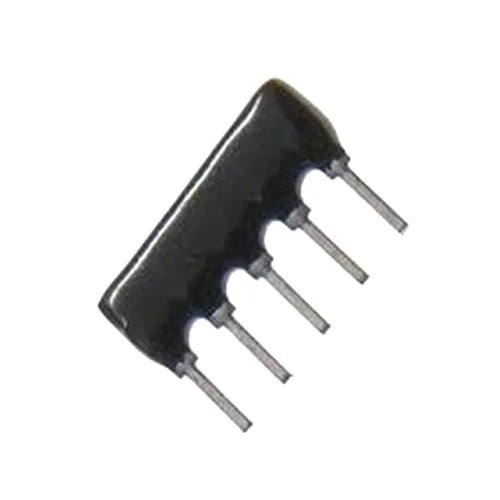

Network SIL 05-PIN 4-RES 1kOhm (5 Pack)

https://www.botshop.co.za/web/image/product.template/1336/image_1920?unique=ff55923
(0 review)

10.75 10.75 ZAR 12.65 VAT Included

11.00 VAT Included

Not Available For Sale

This combination does not exist.

New Arrivals

Internal Reference: EC-130

1k Res Network SIL 05-PIN 4-RES

Ever needed 4 pullup resistors with very little space? Then this is the one you need, it fits next to an IC without taking up that precios space you need in your design. This unit gives you 4x 1k resistors with a common pullup or pulldown rail.

 Technical Specification

Attribute Value
Resistance 1kΩ
Resistor Type Network
Number of Resistors 4
Package/Case SIP
Power Rating 0.63W
Termination Style Through Hole
Tolerance ±2%
Case Style Conformal
Power Rating per Resistor 0.2W
Circuit Designator BUS
Length 12.65mm
Depth 2.49mm
Height 5.08mm
Dimensions 2.49 x 5.08 x 12.65mm
Number of Terminals 5
Series 4600X
Temperature Coefficient ±100ppm/°C
Maximum Operating Temperature +125°C
Minimum Operating Temperature

-55°C



Resources

Here is the datasheet for the Network SIL 5 pin

Datasheet: General data
