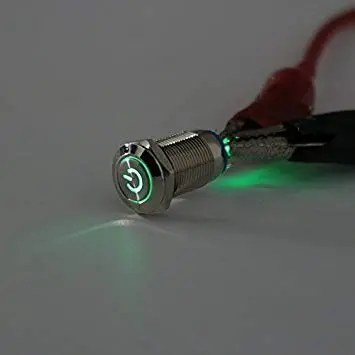

12mm Self-locking power switch green

Are you looking for a reliable and powerful self-locking power switch that’s a breeze to install? Look no further because our 12mm Self-Locking Power Switch is here! It’s designed with hobbyists in mind, meeting all safety standards from insulation resistance to dielectric intensity and protection level.

A push button switch controls an action in a machine or other type of process. They are common features within the home and workplace and are also referred to as pushbutton switches or push switches.

The buttons are typically made from plastic or metal and the push button may either be flat or customised to ergonomic specifications. There is a wide variety of button switch models, which are powered either by momentary or latching action.

Widely used in various additional electric equipment, relay, computer, inside & outside the car, or any circuit controls -- any application you can think of! The switch is IP67 rated, it is also an anti-dust and waterproof one which makes it great for outdoor use. The Latching switch will remain on once it is pressed and stay on until it is pressed again.

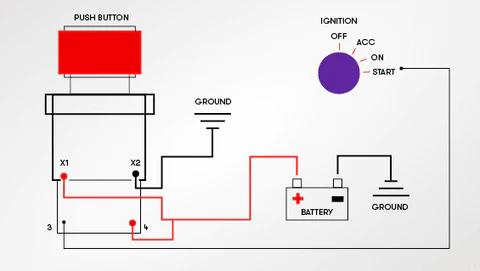

Circuit Diagram

The diagram above demonstrates how a push button can be used alongside an ignition switch as part of a quick-start ignition circuit. This schematic shows the basic circuit design and wire layout required for this particular application.

12mm Self-locking power switch Specification

Tail configuration

Connection terminal(2.8 X 0.5)

Switch Rating

2A/250VAC

Contact resistance

≤50mΩ

Insulation resistance

≥1000mΩ

Dielectric Intensity

2000VAC/min

Operation Temperature

-20℃ ~ +55℃

Mechanical life

500,000 cycles

Electrical life

50,000 cycles

Panel thickness

1 - 10mm

Nut torque

5 - 14Nm

Operation pressure

About 3 - 5N

Operation stroke

About 3mm

Protection level

IP67, IK10

Mounting Cut Hole

16mm

Head Diameter

18mm

Operation Type

Latching

Switch Contact

1NO 1NC

LED Rating

15mA, AC/DC 12V

LED Pattern

Power Indicator

LED Color

Green

Contact Material

Silver alloy

Button Material

Stainless Steel
