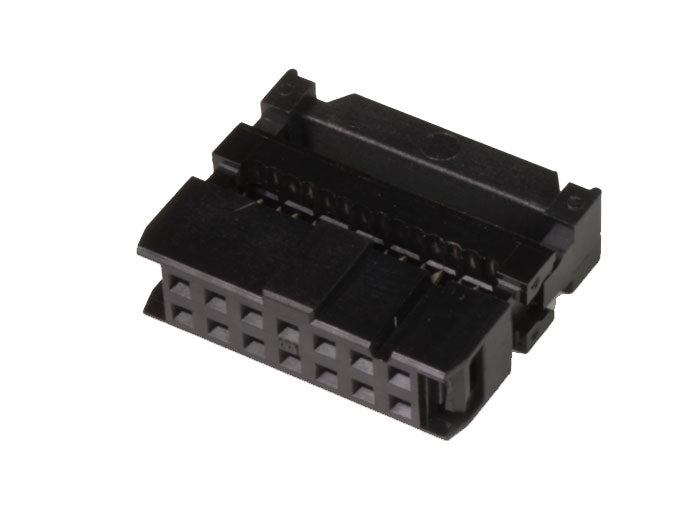

14-Pin IDC Socket Connector for Ribbon Cable (5 Pack)

(0 review)

15.15 15.15 ZAR 15.15 VAT Included

15.49 VAT Included

Not Available For Sale

This combination does not exist.

Internal Reference: EC-103-N

14-pin IDC Female Connector

Introducing the 14-pin IDC Female Connector – the perfect partner for your electronics projects! Whether you’re a hobbyist or a more experienced builder, this connector is perfect for quickly and easily establishing reliable connections between two electronic components.

14-pin IDC Female  Connector is an IDC socket connector used to make physical connections in a variety of applications. They are common in industrial applications, where the accuracy of connections, the ability to make them reliable, and where there may be many wires that need to be connected at once are all vital considerations. This IDC product technology allows cost-effective connections between circuit boards based on a permanent connection (using transition connector) or removable connection (using IDC flat cable connectors).

Because these devices make such reliable connections, they are also ideally suited for environments where dust and other hazards may pose significant threats to electronic equipment. In situations where such equipment needs to be repaired, these connectors can drastically reduce the amount of time required to make those repairs, often reducing repairs to a simple swapping out of cables.

IDC Connector Explained

The above image shows what an IDC connector looks like and how it makes its secure connections the above image also gives us a bit more information on the IDC connector itself.

14-pin IDC Female Connector Specification

  • Gender: Female
  • Connector Type: IDC
  • Current Rating: 2A
  • Mounting Type: Cable Mount
  • Number Of Contacts: 14
  • Number Of Rows: 2
  • Pitch: 2.54mm
  • Contact Material: Phosphor Bronze
  • Minimum Operating Temperature: -65°C
  • Maximum Operating Temperature: +105°C
  • Housing Material: Thermoplastic
  • Contact Plating: Nickel-plated terminals
  • Color: Black
