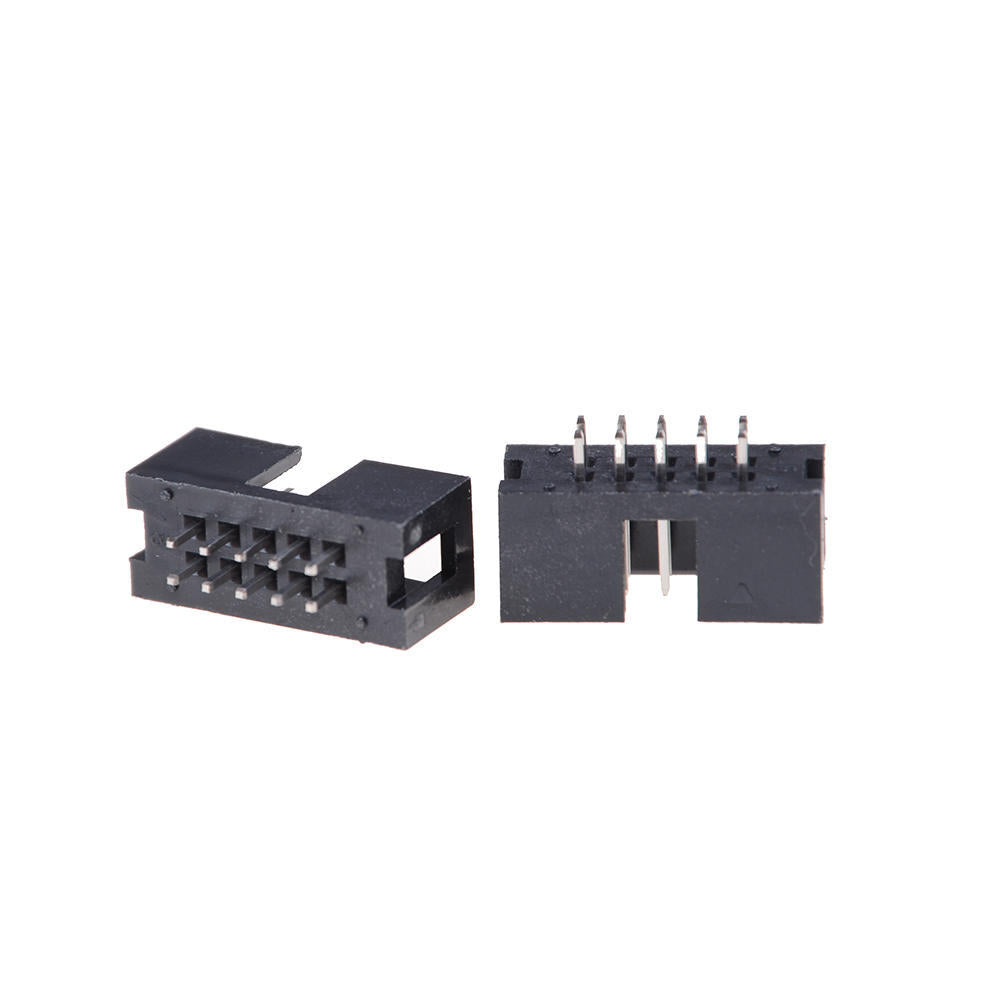

10-Pin 2x5 IDC Header Box PCB Mount Straight (5 Pack)

https://www.botshop.co.za/web/image/product.template/2444/image_1920?unique=52fc2d4
(0 review)

23.00 23.0 ZAR 23.00 VAT Included

20.00 VAT Included

Not Available For Sale

This combination does not exist.


Internal Reference: EC-091-N


10-Pin IDC Header Box PCB Mount Straight 2x5 (5 Pack)

Box header and IDC flat cable connectors are two of the most famous type of connectors in the world, they can be found in nearly all electronic equipment. This IDC product technology allows cost-effective connections between circuit boards based on the permanent connection (using transition connector) or removable connection (using IDC flat cable connectors) Würth Elektronik offers a wide family range in 2,54 & 2,0mm pitch, with a lot of options and pin number available.

The Würth Elektronik WR-BHD is produced according to DIN 41615 standard. Insulation Displacement Connector: An insulated wire is pressed into a terminal slot smaller than the conductor's diameter, displacing the insulation to make electrical contact. Insulation doesn’t have to be removed, this is the major advantage of this termination method.

Specifications:

Current rating: 3Amps
Withstand Voltage: AC 1000V
Insulation Resistance: 1m Ohm/Min
Contact Resistance: 20OmA Max
Operating Temp: -40°C to +105°C
Insulation Material: Polyester(UL94V-0)
Contact Material: Brass
Contact Plating: Au or Sn over Ni
Max Processing Temp: 230°C for 30-60 seconds
