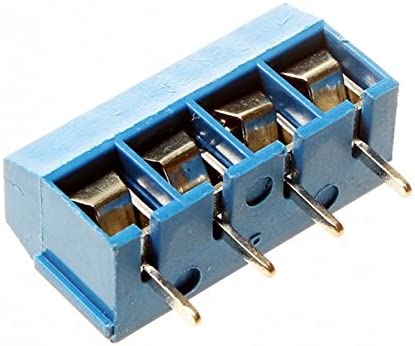

4-Pin Screw Terminal Block 5.08mm Pitch Blue (3 Pack)

(0 review)

13.92 13.92 ZAR 13.92 VAT Included

12.10 VAT Included

Not Available For Sale

This combination does not exist.

Internal Reference: EC-051-N

4 Pin Screw Terminal Block.

A terminal block is a type of insulated electrical connector that connects or secures two or more wires together. They enable the safe connection of wires between circuits. Terminal blocks, also known as terminal strips or connection blocks are used in a wide range of industrial, commercial, and domestic applications. Terminal blocks come in a range of shapes, sizes, and ratings, but always terminate a single wire (single pole) and are never multi-pole.

4 Pin Screw Terminal Block Specification:

  • Pitch: 5.0mm Poles: 4P
  • Screw: M2.5 Steel Zinc plated
  • Wire guard: Phosphor bronze, Ni-plated, or stainless steel
  • Pin header: Brass
  • Tin plated Housing: PBT, UL94V-0
  • Rated current: 16A
  • Withstanding voltage: AC200V/1Min
