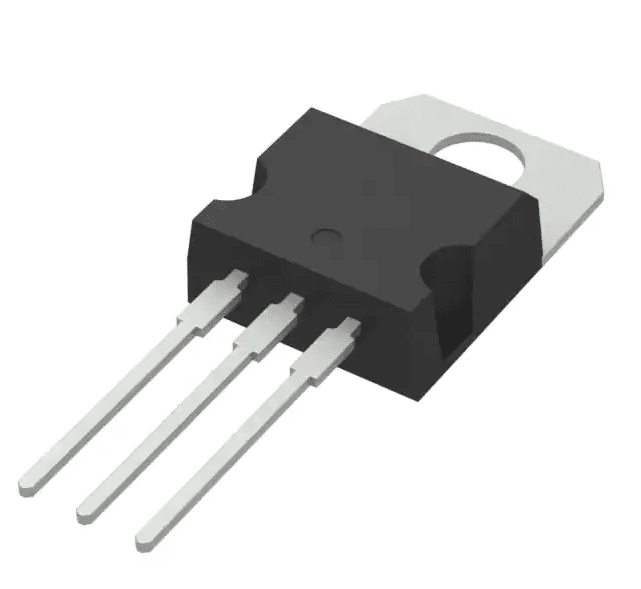

LM317T adjustable Voltage Regulator TO-220

(0 review)

7.75 7.75 ZAR 7.75 VAT Included

7.93 VAT Included

Not Available For Sale

This combination does not exist.

Component Passives Semiconductor

Internal Reference: EC-046

LM317T adjustable Voltage Regulator TO-220

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.

LM317T adjustable Voltage Regulator TO-220
