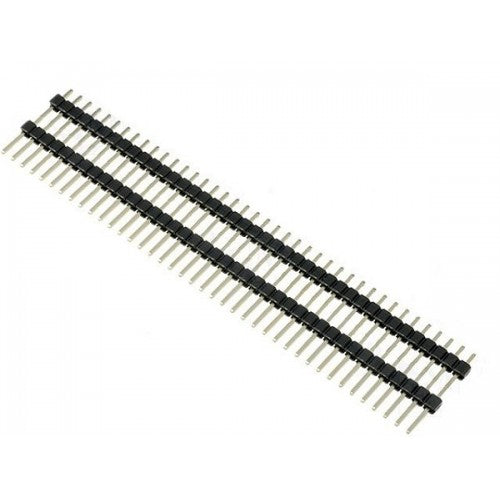

40-Pin Male Single Row Double Insulation Header (10 Pack)

This is a row of 40 breakaway headers spaced 0.1" apart. This header is especially useful when you need to connect a PCB to a solderless breadboard. Each header can be broken apart to your preference to fit custom PCBs or general custom headers.

The most commonly seen pin headers are 0.1" (2.54mm) single or double-row connectors. This is a standard breadboard-compatible pitch. These come in male and female versions and are the connectors used to connect Arduino boards and shields together. Users can easily connect jumper wires to breadboards.

  • Current Rating: 1A
  • Contact Resistance: 20mΩ Max.
  • Insulation Resistance: 1000 MΩ Min.
  • Dielectric Withstanding Voltage: AC 300V
  • Operating Temperature: -40°C to +105°C
  • LCP is Suitable For: IR Reflow, Wave, Manual solder
  • Finish: Tin All Over – 80µ” minimum – Under Plate: Nickel 30-50µ”
  • Net Weight: 43g
